R1 Series XPON ONU Ftth Ont Wifi Gpon/Epon Onu English apc connector
R1
minimum order
1 piece
Quantity
$12.80 - $13.20
/ piece
- Model Number:R1
- Type:ONU
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Use:FTTH
- Warranty Time:1 YEAR
- Network:Wireless Lan, POE, wifi, 4g
- Product name:R1 Series XPON ONU
- receiver sensitivity:≤-27dBm
- luminous power:+1~+4dBm
- transmission distance:20Km
- operating wavelength:TX: 1310nm RX: 1490nm
- operating wavelengths:1550nm
- Input optical power:0~-12dBm
- Optical reflection loss:>45dBm
- Product Size:110*104*27.5
- weight:≤0.5Kg

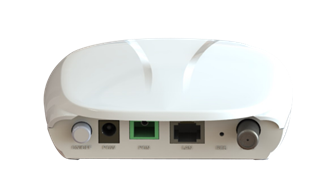

R1 Series XPON ONU
Optical Network Unit (ONU) is a user-side device in PON network, which provides users with access services for data and other services.The main function of the ONU device is to receive optical signals in the downstream direction and convert them into Ethernet messages to be transmitted to the users, and to convert Ethernet messages received from the user's equipment or network into optical signals in the upstream direction and transmit them to the upper-layer network through the PON network. PON network to the upper layer network.

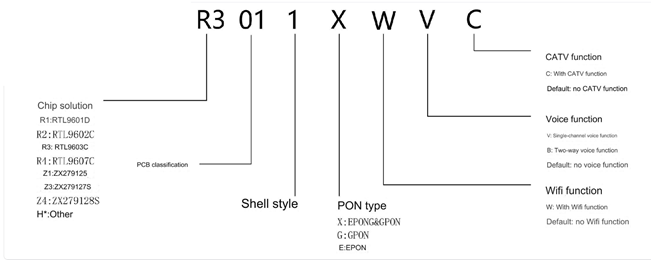

R1 series is the optical network unit (ONU) product in XPON series products developed by our company. The product uses passive optical network (PON) technology, which is superior to traditional access products in terms of cost-effectiveness,
maintainability, expandability and many other aspects. The R1 series provides 1 Gigabit Ethernet port, with a CATV RF interface (optional).
R1 series is the optical network unit (ONU) product in XPON series products developed by our company. The product uses passive optical network (PON) technology, which is superior to traditional access products in terms of cost-effectiveness,
maintainability, expandability and many other aspects. The R1 series provides 1 Gigabit Ethernet port, with a CATV RF interface (optional).
Features
Performance Characteristics
* Supports automatic EPON/GPON mode switching
* Support HGU function
* Supports PPPoe/DHCP/static IP routing mode and bridge mode
* Supports IPV4 and IPV6 dual mode
* Supports LIN IP and DHCP Server configuration
* Supports port mapping and loop detection
* Support Firewall function and ACL function
* Supports IGMP Snooping/Proxy multicast features
* Support one way CATV RF radio frequency (optional)
* Support HGU function
* Supports PPPoe/DHCP/static IP routing mode and bridge mode
* Supports IPV4 and IPV6 dual mode
* Supports LIN IP and DHCP Server configuration
* Supports port mapping and loop detection
* Support Firewall function and ACL function
* Supports IGMP Snooping/Proxy multicast features
* Support one way CATV RF radio frequency (optional)
Specification
sports event | typology | Technical Parameters |
PON | Interface Type | No CATV SC/UPC With CATV SC/APC |
receiver sensitivity | ≤-27dBm | |
luminous power | +1~+4dBm | |
transmission distance | 20Km | |
operating wavelength | TX: 1310nm RX: 1490nm | |
CATV (optional) | operating wavelength | 1550nm |
Input optical power | 0~-12dBm | |
Optical reflection loss | ＞45dBm | |
frequency range | 47-1006MHz | |
flatness | ±1 dBm (47-1006 MHz) | |
output level | ≥80dBuv | |
Output Impedance | 75Ω | |
AGC | 0~-12dBm | |
Carrier-to-noise ratio | ≥51dB | |
CTB | ≥65dB | |
CSO | ≥62dB | |
LAN | Interface Type | 1 Gigabit RJ45 port |
transfer mode | 10/100/1000 Adaptive | |
Power supply related | connector | DC005 φ2.1mm |
input voltage | 12V0.5A | |
power wastage | ≤4W | |
Environment-related | operating temperature | 0~+50°C |
Operating humidity | 10~85% (non-condensing) | |
Storage temperature | -30~+60℃ | |
Size Weight | Product Size | 110*104*27.5 |
Package Size | 210*140*35 | |
Net Weight | ≤0.2Kg | |
total weight | ≤0.5Kg |
