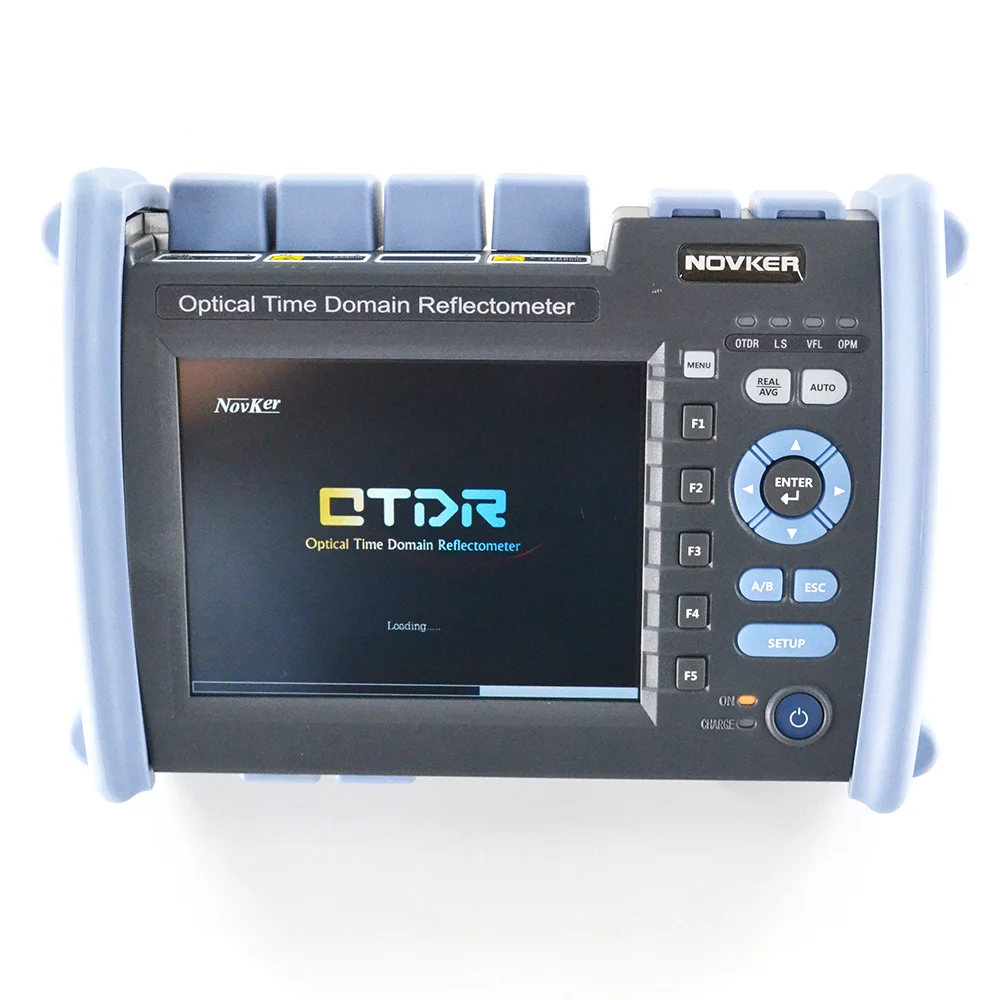

CLN6000 Series 850/1300/1310/1490/1550/1625nm SM MM PON Optic Fiber OTDR Tester With VFL OPM Light Source Event Map OLT
·High performance test
.5.8 inch color TFT LCD display, touch/ key dual operation
.Dynamic range:. 32/30dB , Less than 0.8 meters ultra short event blind area , testing optical fiber jumper freely.
.Link optical nondestructive testing
.Signal optical detection function(Effective protection of APD)
·Mutifunctional test - Standard configuration

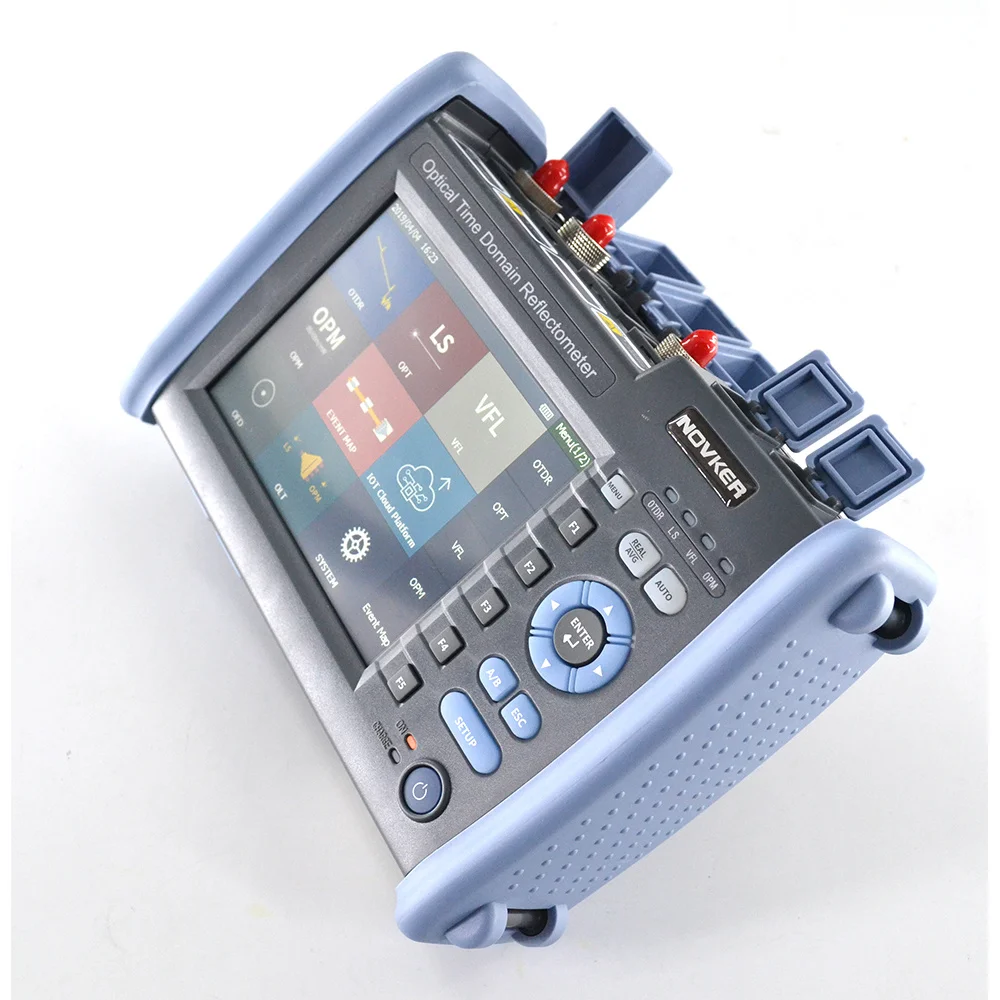

CLN6000 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by Shenzhen CaiLi Telecommunication Technology cor., ltd. for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuously.
It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.
·High performance test
.5.8 inch color TFT LCD display, touch/ key dual operation
.Dynamic range:. 32/30dB , Less than 0.8 meters ultra short event blind area , testing optical fiber jumper freely.
.Link optical nondestructive testing
.Signal optical detection function(Effective protection of APD)
·Mutifunctional test - Standard configuration
.Stable laser source
.Visual red light fault location (VFL)
Optical power meter (OPM)
·Mutifuntional test - high configuration
Intelligent Optical Link Mapper [iOLM]
Optical fiber end face detection
Optical loss test Fault location
One key automatic test
unique diagnostic function for test
Multi wavelength simultaneous testing function
Ethernet Remote control
·Convenient data processing
English and Chinese input function
Automatic data storage
SOR Batch processing
Remote upgrade fun
Note: This OTDR has the 6 functions: OTDR , VFL, OPM, LS(Light Source) , Event Map ,OLT (Optical Loss test), it does not have other extra functions, such as OFD , ans so on.
NK6000 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous
Applications
It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.
Features
·High performance test
5.8 inch color TFTLCD display,
touch/ key dual operation
Dynamic range:. 32/30dB
Less than 0.8 meters ultra
short event blind area
testing optical fiber jumper freely..
Link optical nondestructive testing
Signal optical detection function
(Effective protection of APD)
·Mutifunctional test - Standard configuration
OTDR.
Stable laser source
Visual red light fault location (VFL)
Optical power meter (OPM)
·Mutifuntional test - high configuration
Intelligent Optical Link Mapper [iOLM]
Optical fiber end face detection
Optical loss test
Fault location
·Convenient operation
One key automatic test
unique diagnostic function for test
Multi wavelength simultaneous testing function
Ethernet Remote control
·Convenient data processing
English and Chinese input function
Automatic data storage
SOR Batch processing
Remote upgrade function
IOT Cloud Platform soon
·High reliability
20h Super long standby
1.5 meter drop test
Waterproof and splash proof
Operating temperature -10℃~50℃

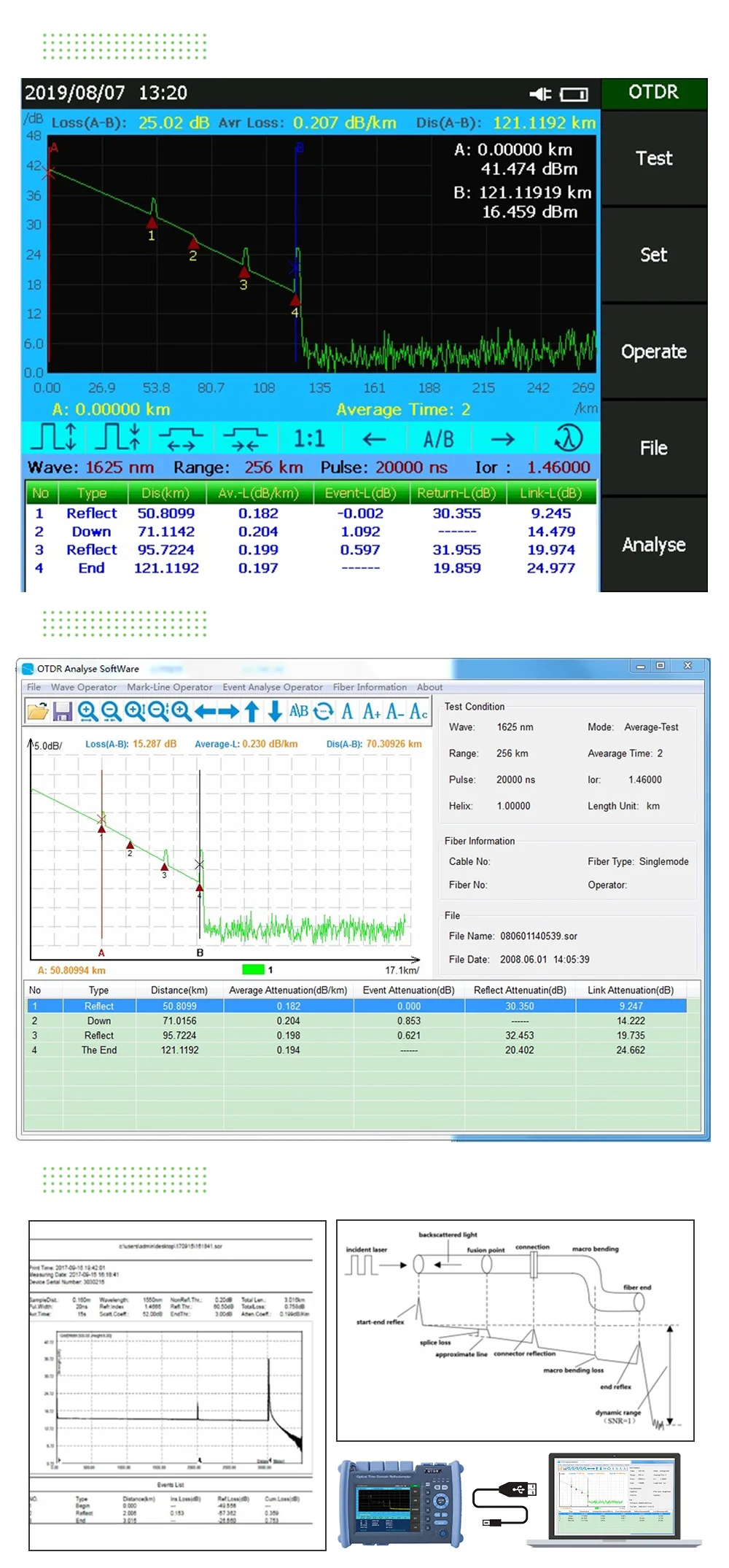

Setting test parameters
Look up the curve analysis results
Measuring the distance and average loss between two points
Select the curve target position and the current selected cursor will switch to the target position.
The navigation key in the key area can also move the cursor position.
Storage and export of the test results
The instrument is equipped with client simulation analysis software. So the waveform preview, offline analysis, print preview and batch printing progressing can be done at the computer terminal. This can be convenient for user management and maintenance of optical fiber link database.
Waveform preview and offline analysis Batch printing progressing
Select the printed file by previewing the waveform. This can convenient user to submit test report.
Batch printing progressing
You can view test reports by batch print preview. The test reports contains test waveforms, link loss, average loss, event list and other information, and then you can batch print after checking.
