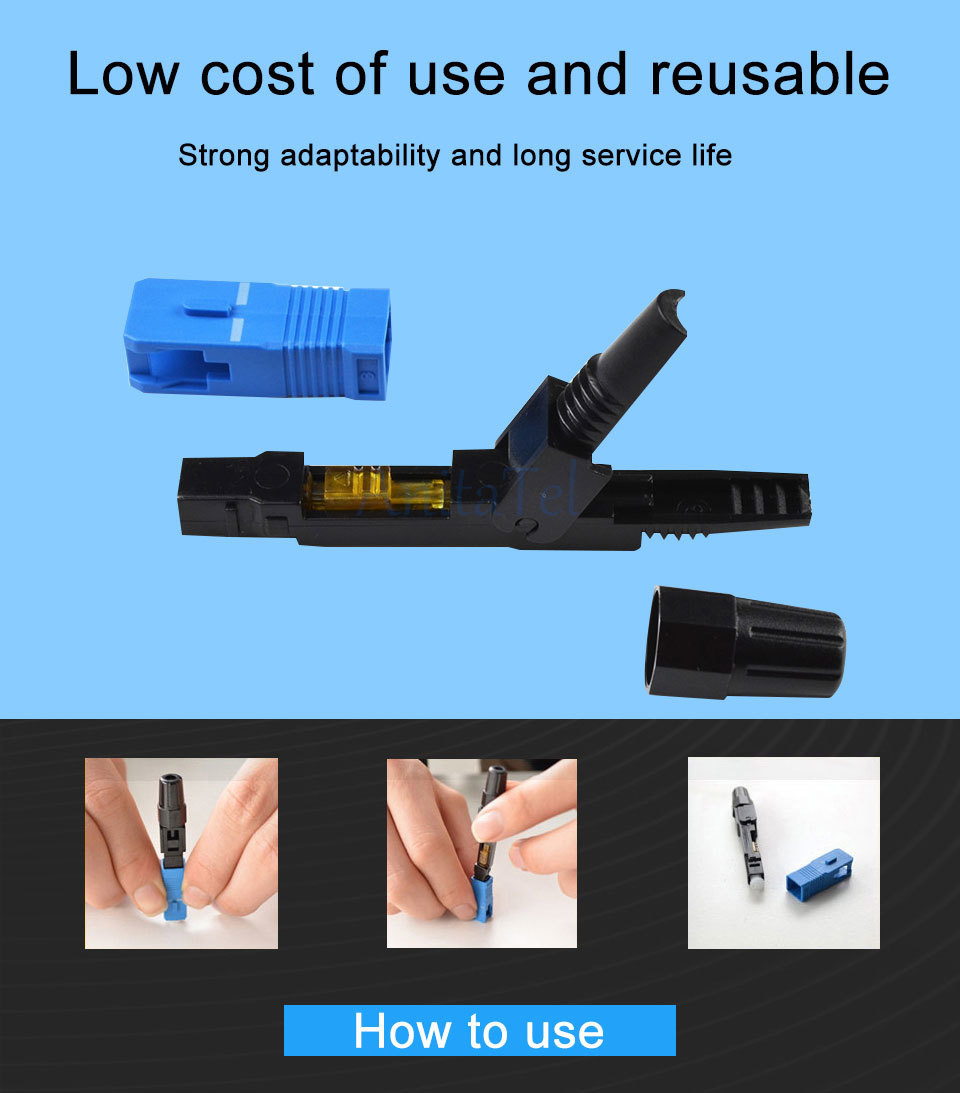

55MM SC/APC SC/UPC Single-Mode Optical Quick Connector FTTH Fiber Optic Fast Connector SM Field Assembly
- Model Number:SC APC/UPC Quick Connector
- Type:Mainland China
- Place of Origin:Guangdong, China
- Brand Name:CaiLi
- Use:FTTH
- Warranty Time:1 year
- Network:Wireless Lan, TCP, GPRS, wifi

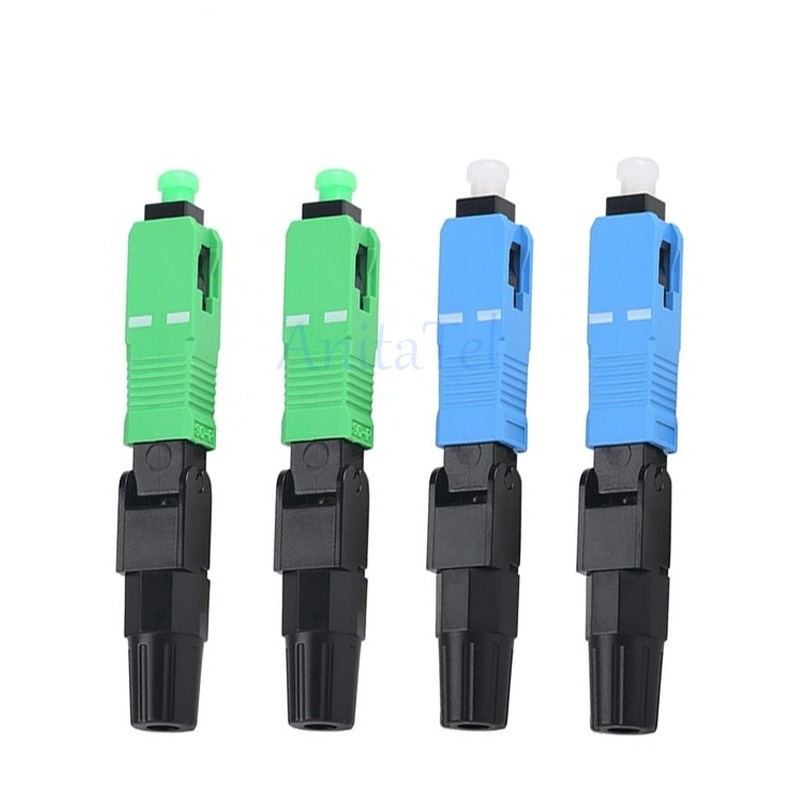

- Connector Type:SC APC UPC
- Product name:Fiber Optic Fast Connector
- Application:FTTN
- Wavelength:1310/1550nm
- Certification:CE RoHS FCC
- Warranty:1Year/12Months
Features:
1. FTTH project usable

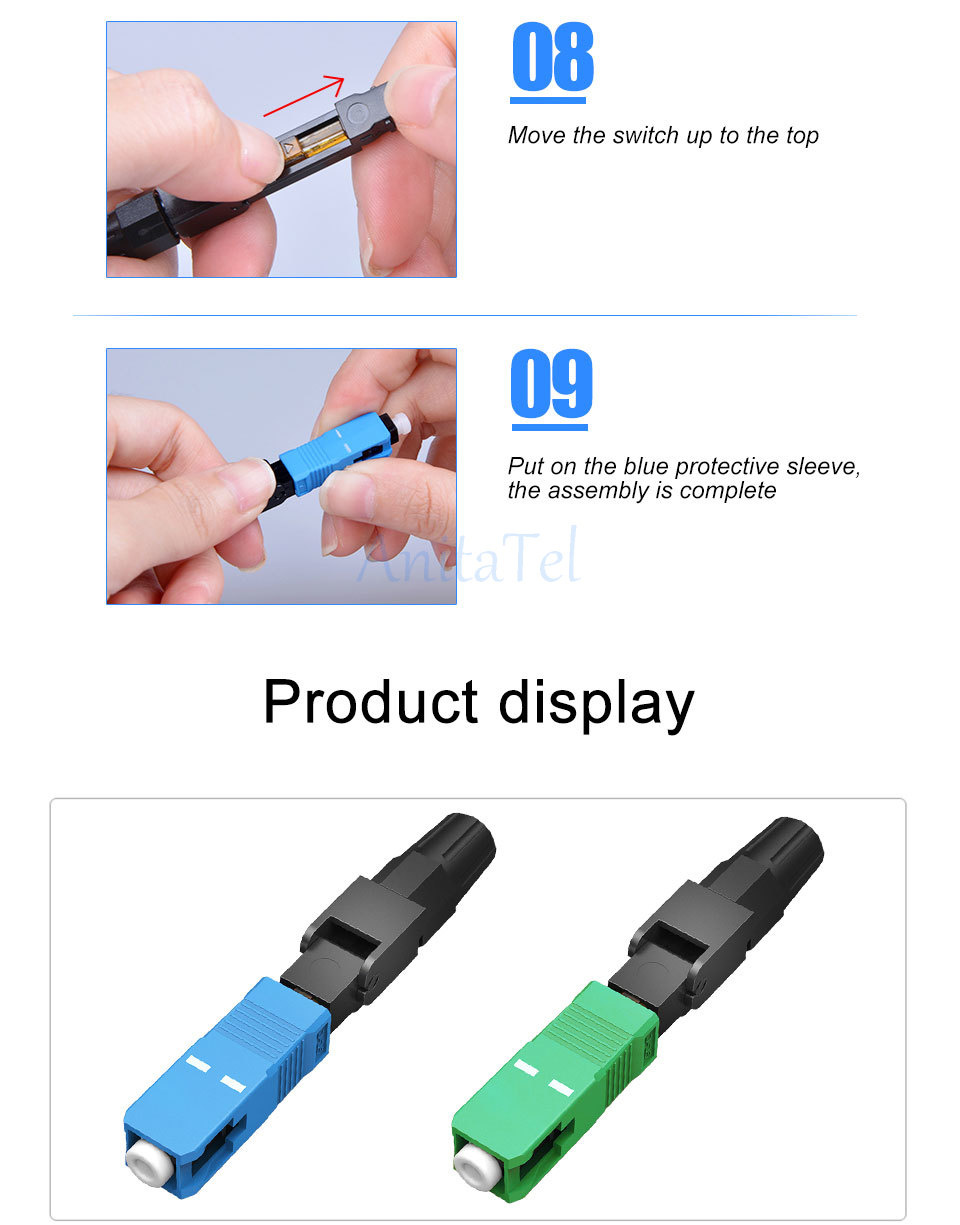

2. Field installable
3. Insert loss less than 0.3dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
Parameters:
ITEM | Technical Parameters |
Applicable for | Drop cable / Indoor cable 2.0mm, 3.0mm Drop Cable |
Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
Return loss | > 50db(PC), > 55db(UPC), >65db(APC) |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
