FVM-100 Inspection Fiber Video Probe Microscope
Fiber Optic End Face Inspection
Probe Microscope Fiber Optic End Face Inspection
fiber vedio monitor FTTH fiber optic probe network fiber optic inspection tool IP network fiber optic detector 3G network fib

FVM-100 Optical Cleaning Tool Microscope Fiber Optic End Face Inspection Detector Display 3G Compatible for FTTH Optical Clean

FVM-100 Inspection Fiber Video Probe Microscope

minimum order

1 set

Quantity

$310.00 - $320.00 / set

Contact Now

add to cart

Model Number:FVM-100 Inspection Fiber Video Probe Microscope
Type:Fiber Video Probe Microscope
Place of Origin:Guangdong, China
Brand Name:CaiLi
Use:FTTH
Warranty Time:1 Year
Network:Wired LAN, None, Ip, 3G
Power Source:DC 5V
Product name:Inspection Fiber Video Probe Microscope
Application:Network Equipment
Connector Type:UPC
Model:FVM-100
Warranty:3 Years
Weight:2kg

FVM-100 Inspection Fiber Video Probe Microscope Fiber Optic End Face Inspection Detector Display Optical Cleaning Tool Clean pen

NOTICE:

1.Buyer is responsible for the customs duty and local import taxes etc. The price here not

includes the destination fee in buyer's side.

2.Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after placing the order

3.These countries, like Brazil, Mexico, E-packet and China Post delivery time maybe around 20-90 days

Fiber Optic MicroScope Connector Inspection Video optical fiber Inspection Probe and Display

Product Attributes

The end face of the fiber optic connector plug has dirt or small particles that are invisible to the naked eye, which may cause the optical signal to be blocked, or cause the reflected wave to damage the optical fiber, or even damage the light source, causing significant damage to the entire communication system. The fiber connector ferrule must be inspected and cleaned before the fiber optic connector is connected. Inspection of the fiber end face is the key to reducing maintenance costs, improving troubleshooting efficiency, and ensuring transmission quality. This product comes standard with a 3.5-inch display, and a 5-inch and 9-inch display is optional. Please purchase it according to your needs. The default 3.5-inch display. Please inform the shopkeeper if you have special needs.

The main function:

Quick and easy to check

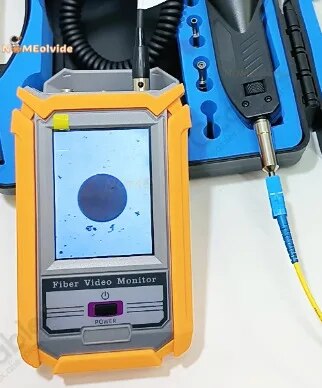

Can be directly inspected, or can be inserted into the flange to check the fiber end face on the 2.5mm or 1.25mm ferrule.

Fiber end face inspection is widely used

Such as DWDM, SDH, SONET equipment and various fiber transmission racks, optical switches, optical distribution boxes, etc.

gain

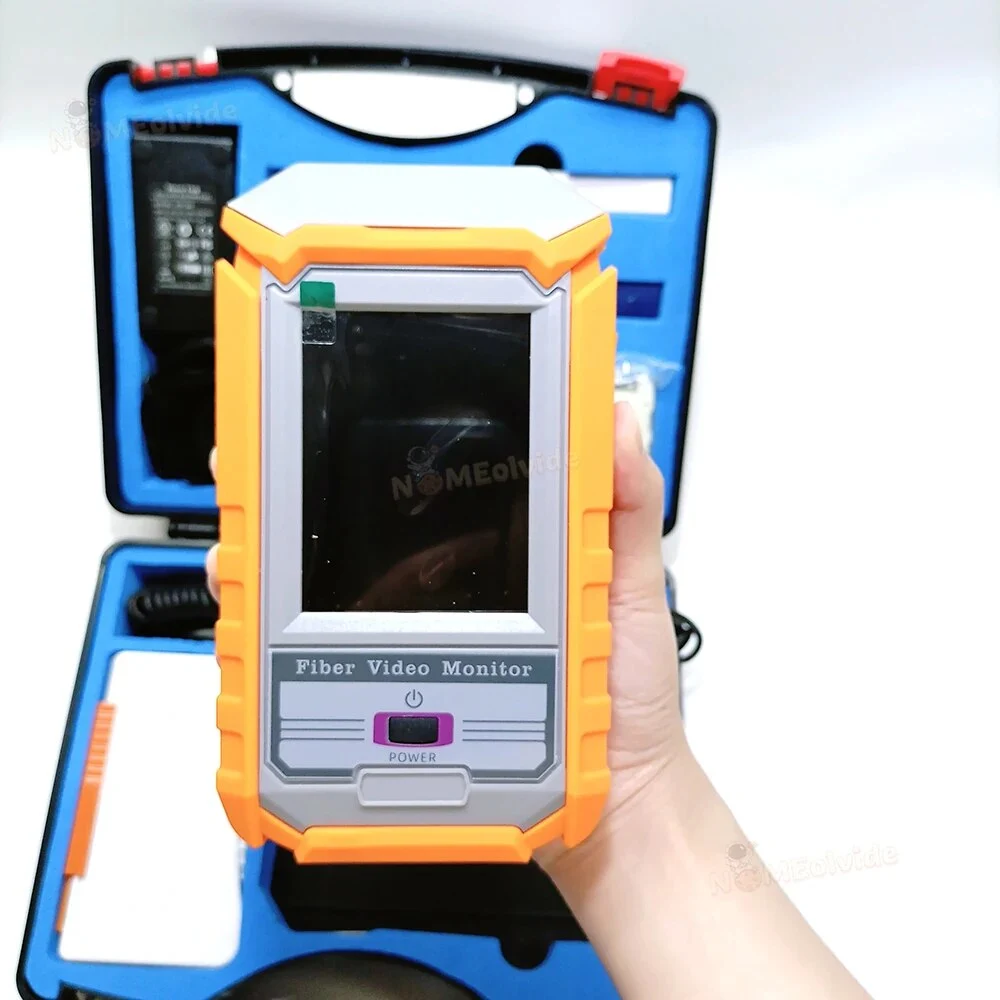

A 3.5-inch, 220,000-pixel TFT high-definition LCD display magnifies the image by 250 times, making it easier to determine the condition of the fiber end face.

External computer can record test results

Connected to the computer via a USB adapter cable, the test picture can be stored in the computer

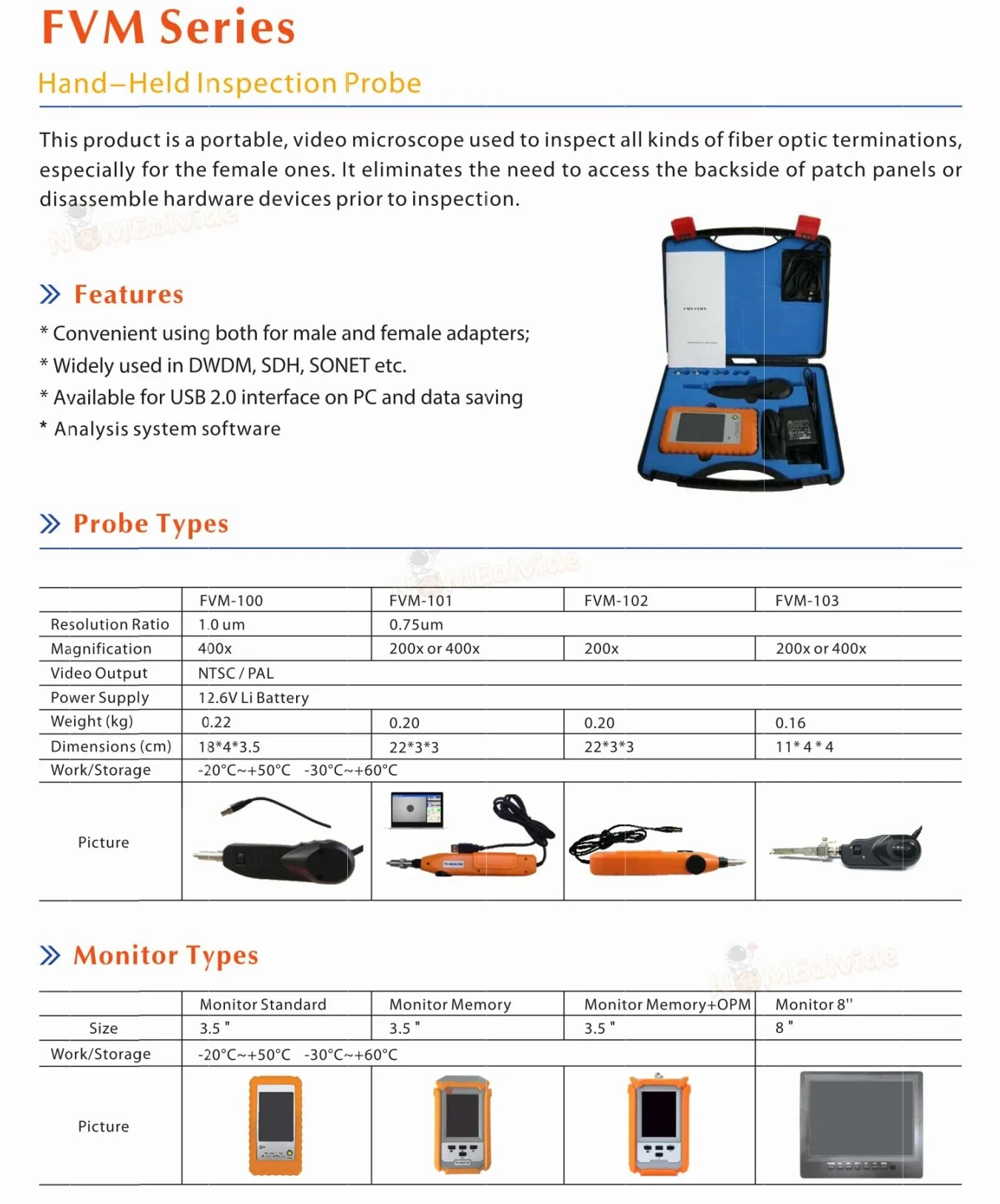

Technical Parameters:

Specific indicators

Magnification 300X (5-inch display screen) 250X (3.5-inch display screen)

Resolution 0.5μm

Display screen 3.5” TFT-LCD, 960 x 240 pixels

Output PAL/NTSC

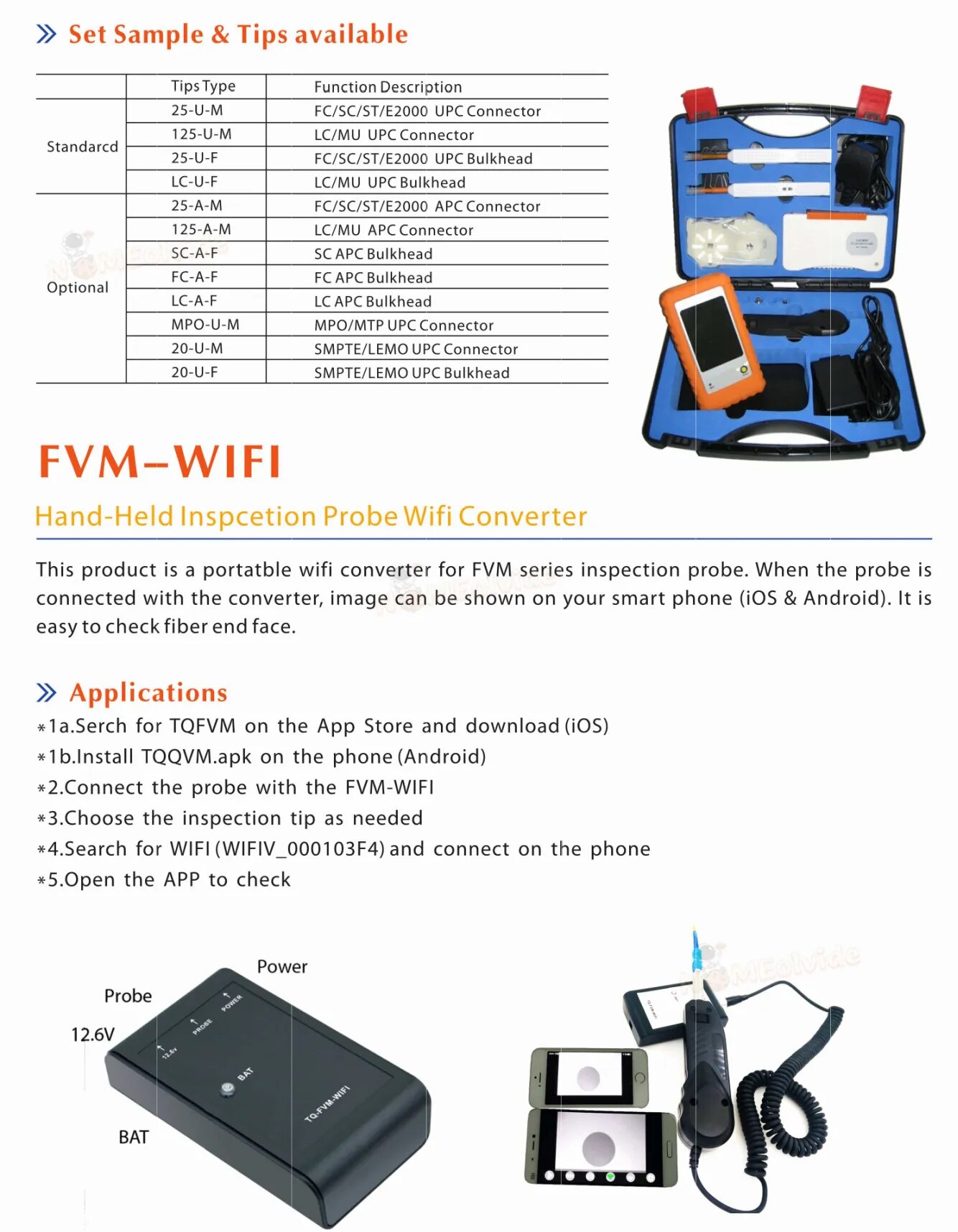

Support Fiber Test Adapter Type 2.5mm PC Adapter

Test: PC connector for FC/SC/ST/E2000 fiber patch cord

1.25mm PC adapter

Test: PC connector for LC/MU fiber patch cord

2.5mm APC Adapter

Test: APC connector for FC/SC/ST/E2000 fiber patch cord

1.25mm APC Adapter

Test: APC connector for LC/MU fiber patch cord

FC/SC/ST/E2000

Test: Fiber end face inside FC/SC/ST/E2000 adapter

Adapter LC/PC Adapter

Test: Fiber end face inside LC/PC adapter SC/APC

Test: Fiber end face inside SC/APC adapter FC/APC

Test: Fiber end face inside FC/APC adapter LC/APC

Test: Fiber end face inside LC/APC adapter

Other parts

Battery / Power 3.7V, 4500mA rechargeable lithium battery / 5V / 1A lithium battery charger

Weight / volume 1.5kg

Working / storage temperature -20 ° C - +50 ° C, -30 ° C - + 60 ° C,

Purchase configuration list

Model Function Description: FVM-100

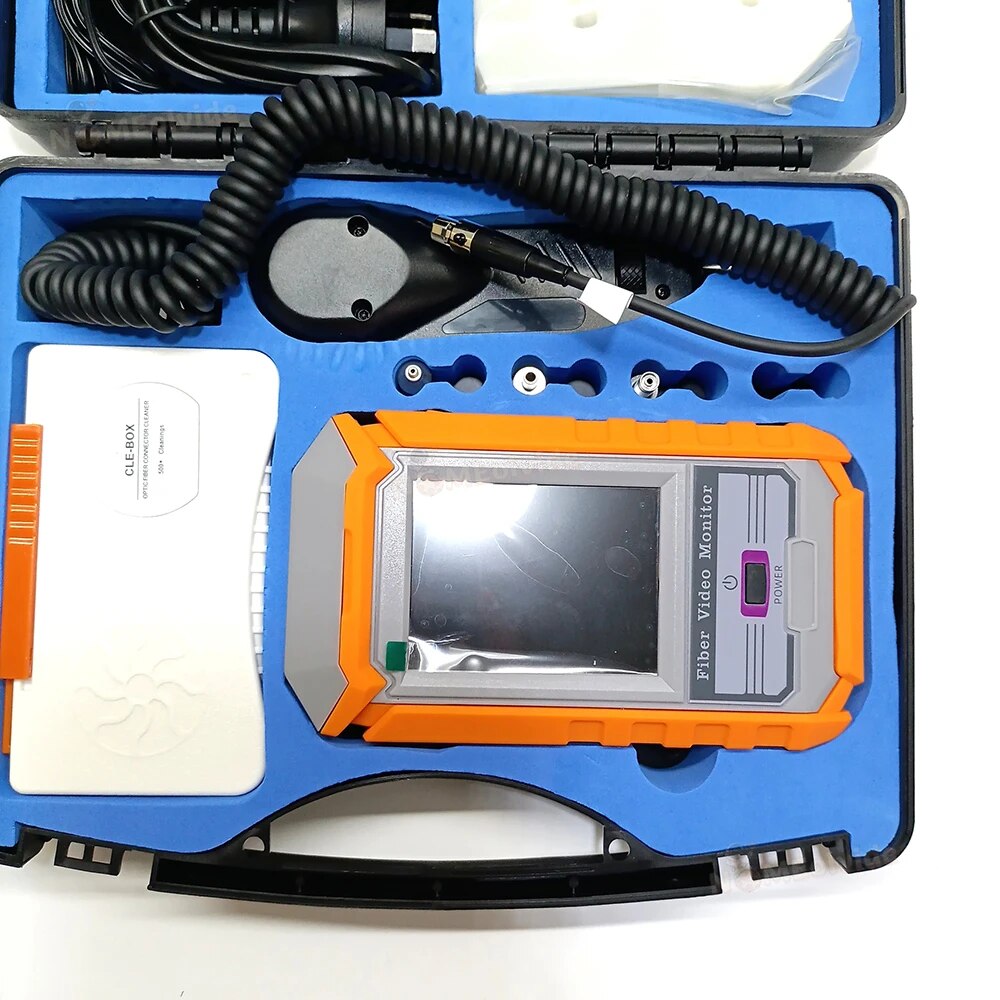

Standard configuration: 1 test handle, 1 display host, 1 2.5mm PC adapter, 1 1.25mm PC adapter, FC/SC/ST/E20001, 1 LC/PC adapter

Other options list Adapter options:

One 2.5mm APC adapter, one 1.25mm APC adapter, one SC/APC adapter, one FC/APC adapter, one LC/APC adapter, and one AV/USB converter.

Attachment configuration

Charger, manual, carrying case, lithium battery, factory certificate.

Product Description

Product name	Fiber Optic End Face Inspection Detector
Model	FVM-100
Brand	CaiLi
Warranty	3 year
