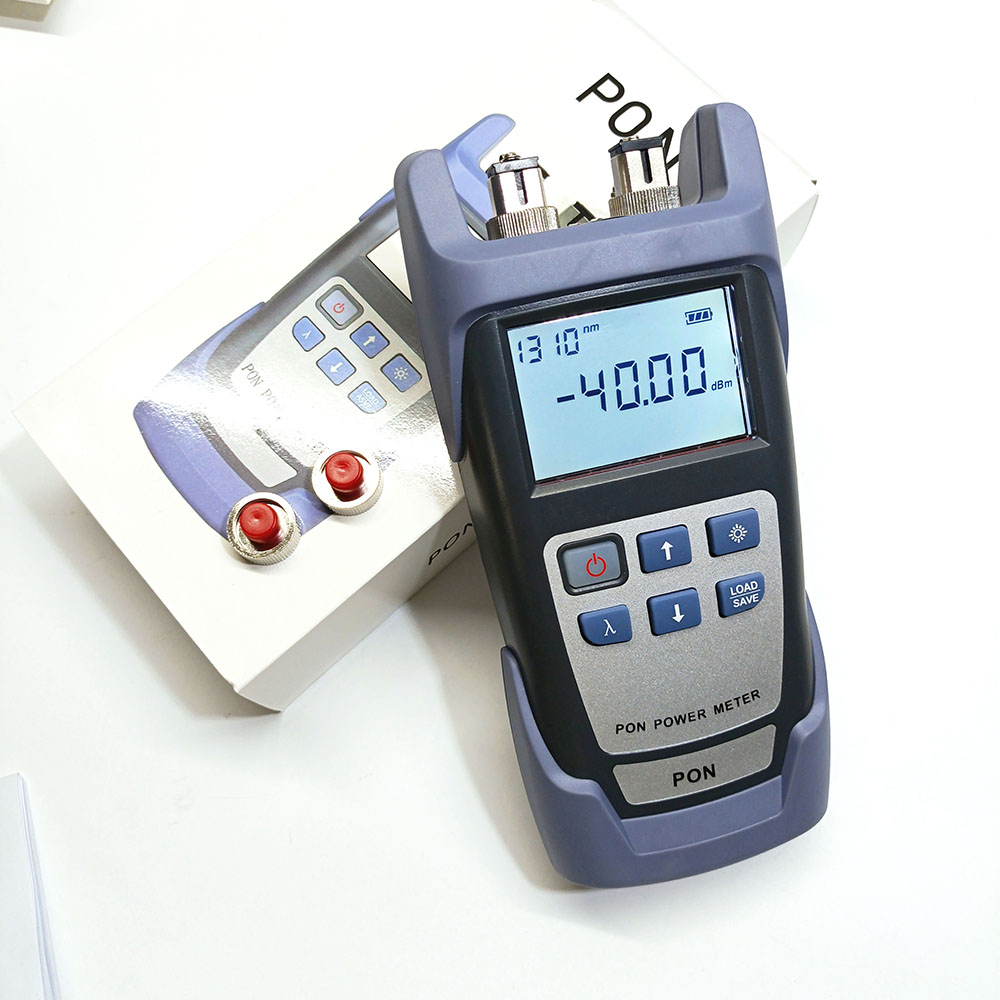

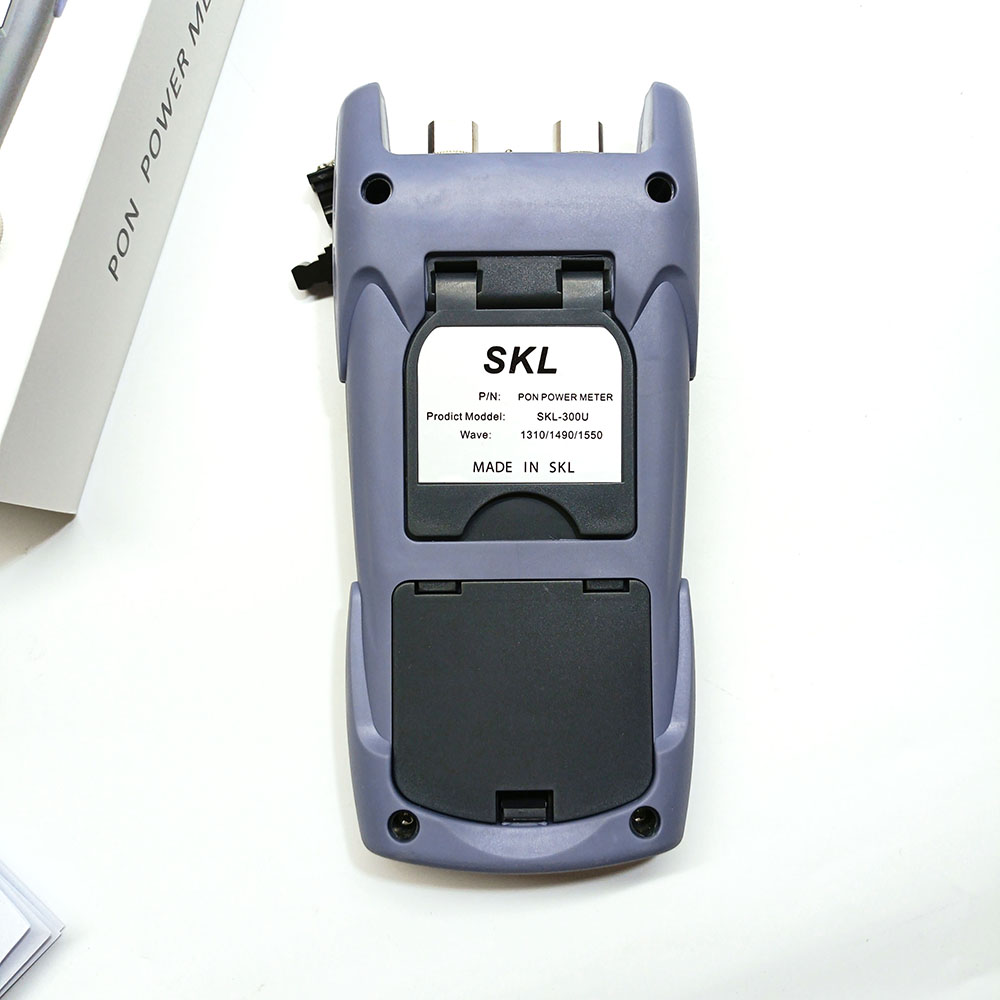

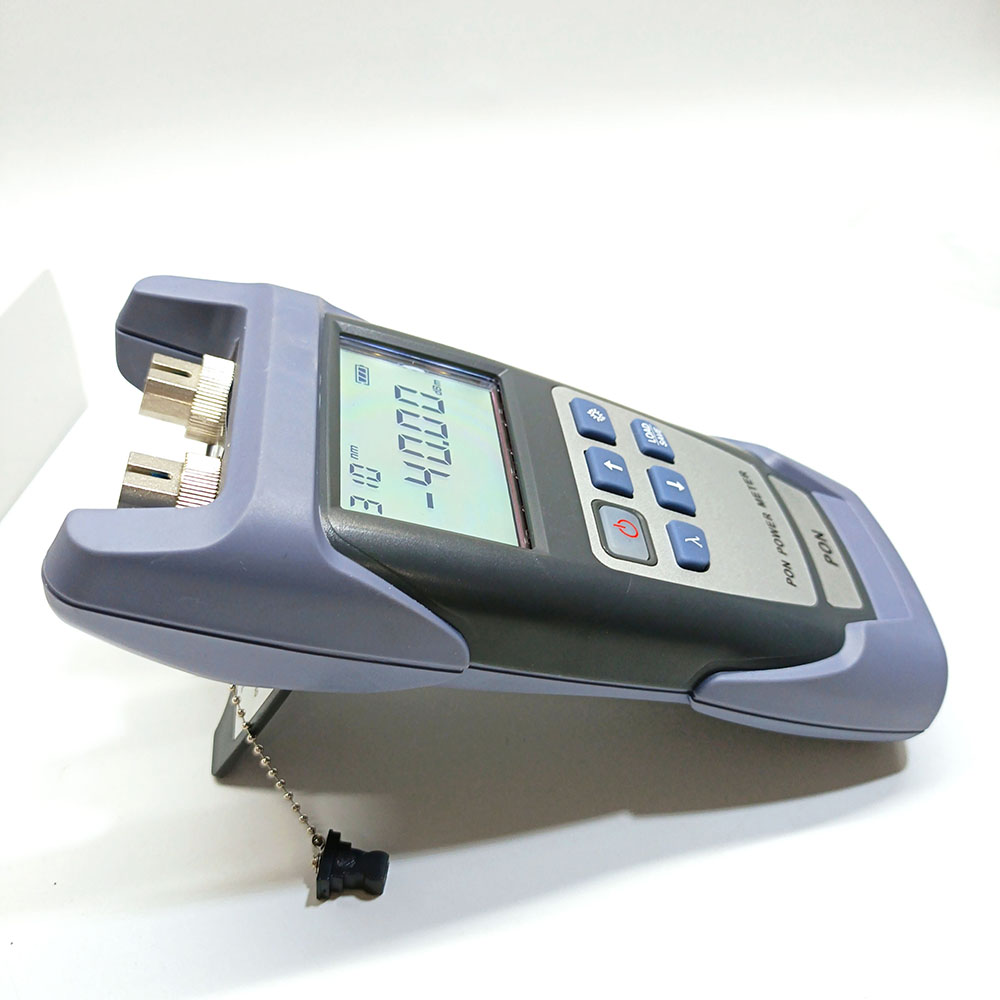

CL-320A/U Handheld Fiber Optical PON Power Meter FTTX/ONT/OLT 1310/1490/1550nm Fiber Optic Test Tool
- Model Number:CL-320A/U
- Type:Fiber optic power meter
- Place of Origin:Guangdong, China
- Brand Name:Other
- Use:FTTX
- Warranty Time:1 year
- Port:NONE
- Power Source:NONE
- Connector Type:sc
- Power - Minimum Receivable:NONE
- Frequency Range:NONE
- Network:None
- Product name:PON OPM
- Application:FTTH
PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be
connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical
power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network
1. Handheld, easy to operate

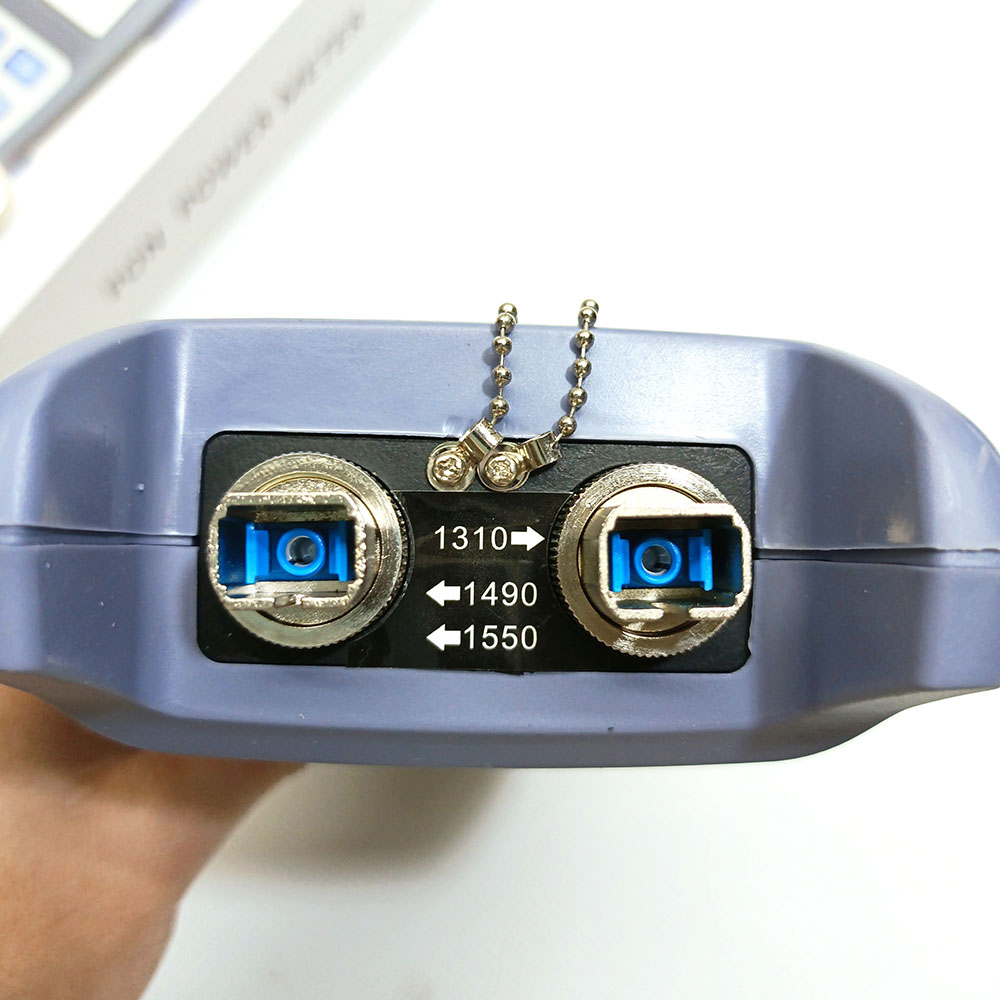

2. Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm,
3. Can test the burst mode signal of 1310nm
4. True color screen
5. Friendly operation interface, human message management and operation function
6. Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status
7. Relative value choice and edit function
8. Can set the threshold value, upload data, and calibrate wavelength through management software
9. Auto shut off (according to set value)
10. Auto backlight off(according to set value
11. 6600mAh Lithium battery
12. Power saving design (Low voltage self check and power off)
13. Real-time clock display
14. Optical Power Meter ( not have)
15. Visual Fault Locator ( not have)
