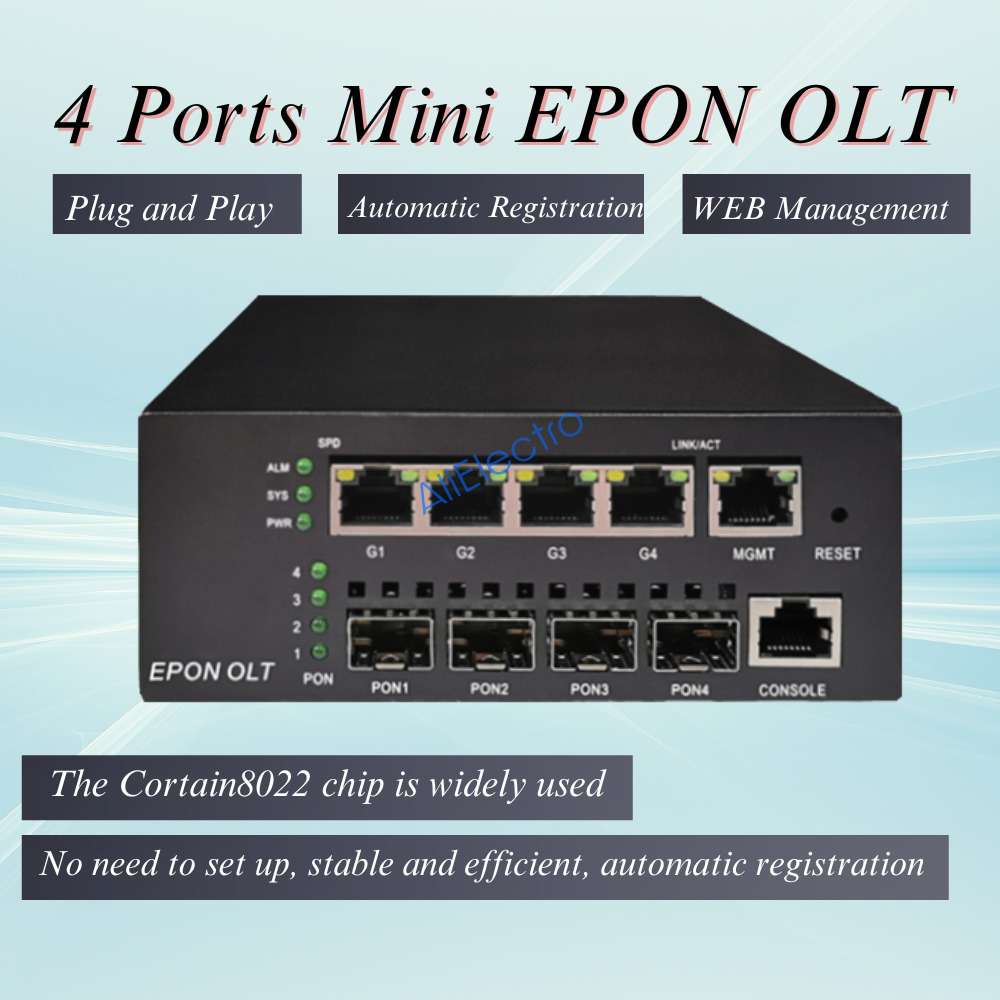

Fiber Fusion VFL Epon 2 4 Pon 2 4 8 16 Port FTTH OLT Mini Fiber Optic Equipment 4 Ports OLT Rj45 Uplinks Epon OLT
- Model Number:NF5804S OLT
- Type:OLT
- Place of Origin:Guangdong, China
- Brand Name:CAILI
- Use:FTTH
- Warranty Time:2 YEARS
- Network:None, TCP, IP
- Product Name:Mini OLT
- Operating wavelength:1310(RX) /1490(TX)
- Optical power:+2.5 ~ +7dBm
- Receiving sensitivity:-30dBm
- Max distance:20km
- Capacity:4 PON, Maximum 256pcs ONU
- Uplink port:4 1000M RJ45 Uplink Ports
- PON port:4 SFP PON ports
- Compatibility:Other Brands EPON or Xpon Onu Ont
Fiber Fusion VFL Epon 2 4 Pon 2 4 8 16 Port FTTH OLT Mini Fiber Optic Equipment 4 Ports OLT Rj45 Uplinks Epon OLT Gepon
Feature

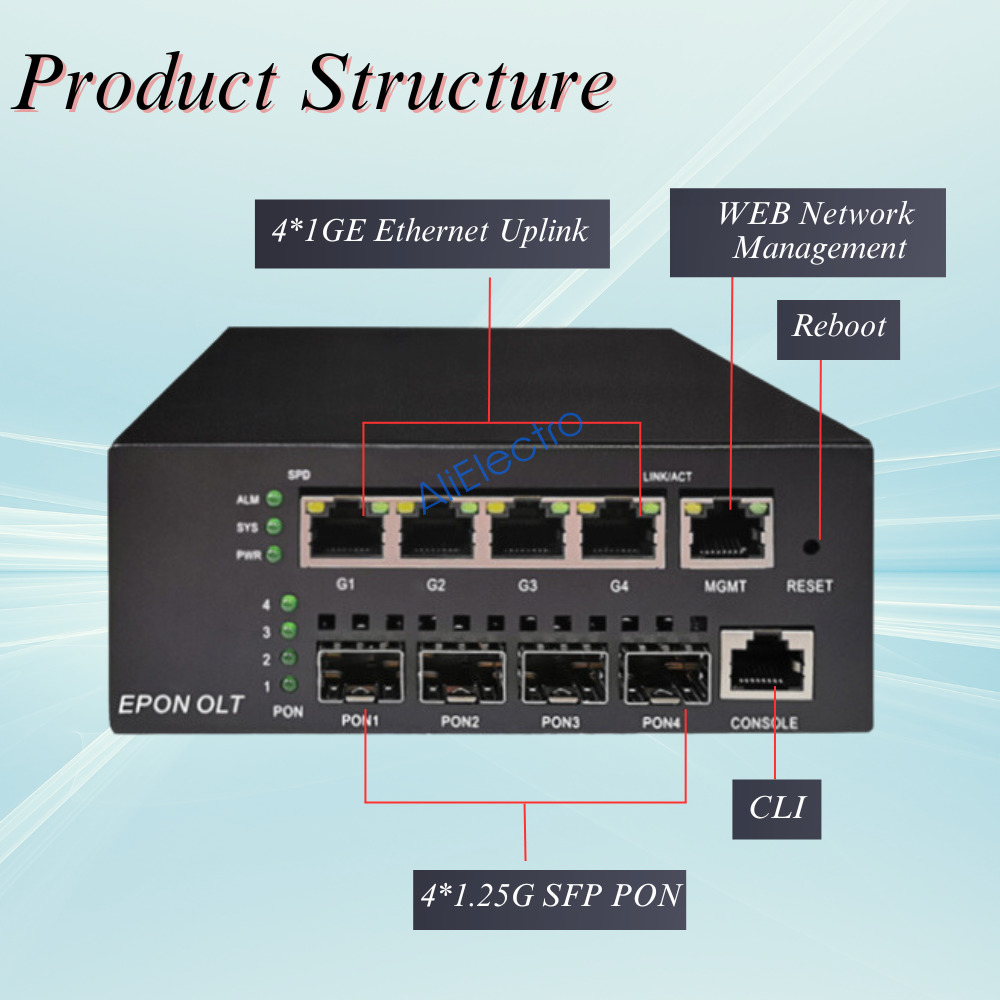

(1)Supply 4 SFP PON ports, 4 *1000M RJ45 uplink ports
(2)Each PON port support 1:64 split ratio, total 256 ONUs access
(3)Distance can reach 20km under 1:32 split ratio
(4)Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP
services access

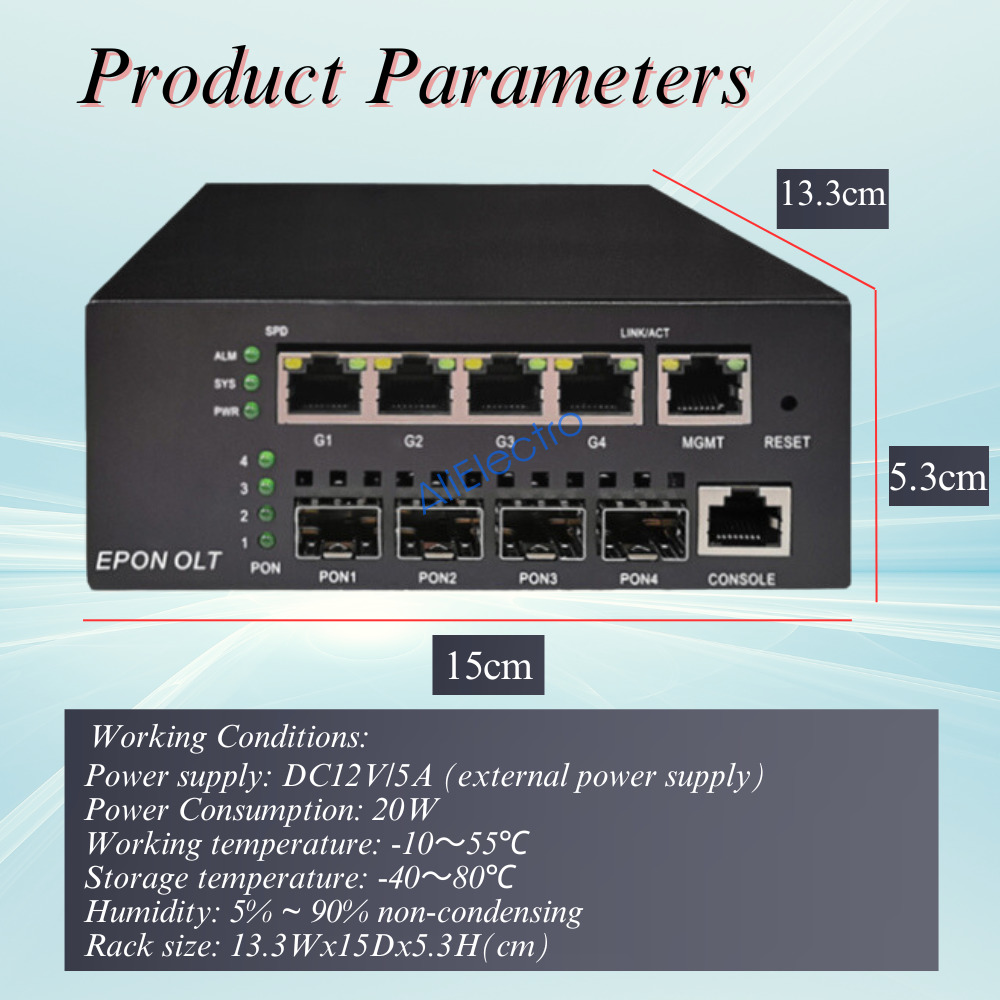

Parameter | Specification |
Operating wavelength | 1310(RX) /1490(TX) |
Optical power | +2.5 ~ +7dBm |
Receiving sensitivity | -30dBm |
Max distance | 20km |
Max splitter ratio | 1:64 |
Capacity | 4 PON, maximum 256pcs ONU |
MAC | 8k |
Uplink port | 2 SFP ports + 2 TP ports |
PON port | 4 SFP PON ports |
Control port | 1 10/100/1000M RJ45 port |
MTBF | 100,000 hours |
| Support IEEE802.3ah |
Support DBA with minimum1Kbps granularity adjustable | |
Support 1Gbps up link and down link symmetrical bandwidth | |
Support AES-128 encryption to each Logical Link Identifier | |
Support powerful OAM function, implement telnet management, maintenance and upgrade | |
Support auto discovery and auto register of ONU (real-time operation) | |
| Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z |
Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree | |
Support IEEE 802.1P QoS,IEEE802.3X Flow Control | |
Support IEEE802.3ad Trunk,IEEE802.1W RSTP | |
| Support GUI management based on SNMP |
Support WEB and Telnet GUI management based on CLI | |
| Support 1GMPv1/v2 protocol report, query and leave message mouse |
Support ONU remote configure and upgrade | |
Support real-time alarm detection, accurate fault location | |
Support the alarm information sent to the mailbox, support SMS alarm |
