10pcs/lot Fiber Optic Splitter 1x2 1x4 1x8 1x16 1x32 PLC SC/UPC SM 0.9mm G657A1 LSZH 1m Singlemode White
G657A1
minimum order
1 piece
Quantity
$1.60 - $2.30
/ piece
- Model Number:G657A1
- Type:Single Mode
- Place of Origin:Mainland China
- Brand Name:TYBT
- Use:FTTH
- Warranty Time:SC UPC
- Network:None
- Product name:Fiber Optical Splitter
- Application:FTTH FTTB FTTX Solution
- Color:Blue
- Connector Type:SC UPC
Fiber Optic SC/UPC SM 1x2 1x4 1x8 1x16 1x32 0.9mm G657A1 LSZH PLC Splitter 1m
Specification
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |||||
Operating Wavelength (nm) | 1260~1650 | ||||||||||
Fiber Type | SMF-28e or customer specified | ||||||||||
Insertion Loss (dB)(S/P Grade) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 | |||||
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |||||
Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | |||||
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |||||
Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | |||||
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |||||
Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |||||
Operating Temperature (°C) | -40~85 | ||||||||||
Storage Temperature (°C) | -40~85 | ||||||||||
Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector | |||||
Features
1.Good environmental stability
2.Low insertion loss
3.Low back reflection
4.Strong optical performance
5.Meet different transmission wavelength requirements
2.Low insertion loss
3.Low back reflection
4.Strong optical performance
5.Meet different transmission wavelength requirements
Videos
Packing & Check List
About CaiLi

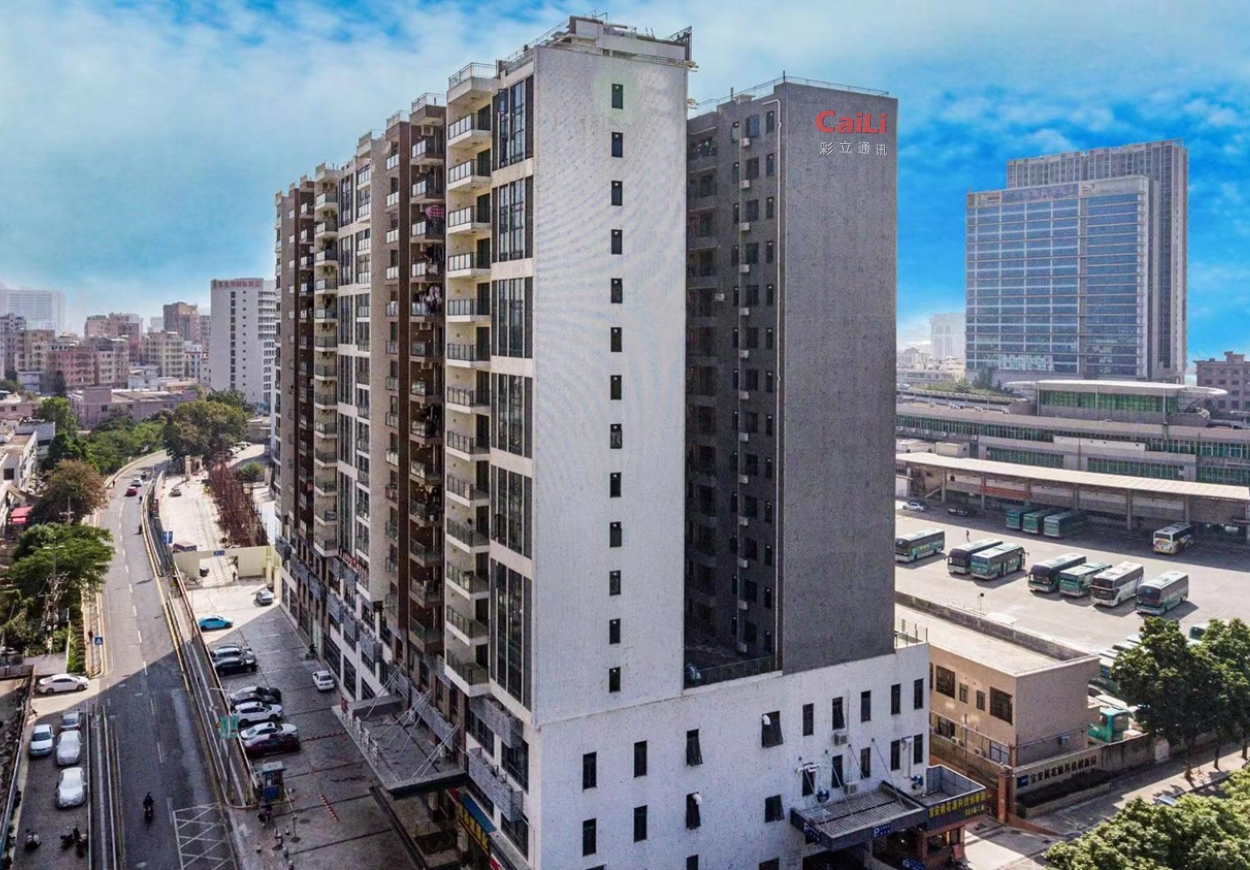

Shenzhen CaiLi Telecommunications Technology Co., Ltd., founded on December 15, 2020, is headquartered in Shiyan Street, Shenzhen,China, known for its scenic landscapes. Positioned conveniently at the crossroads of Futian, Nanshan, and Longhua districts, the location ensures accessible transportation. Leveraging a decade of global experience, CaiLi entered the optical communication arena, focusing on international trade and cross-border e-commerce.
CaiLi provides a comprehensive range of telecommunication equipment, cables, and integrated solutions. Our expertise supports clients in successful FTTH, fiber optic, wireless, and network communication, CATV/IPTV broadcasting, and data center operations. Engaging in information system integration, technology research, and the development and sales of communication equipment and accessories, we conduct import and export business.
Driven by entrepreneurial passion and"Made in China"cost-effectiveness, CaiLi relies on the robust manufacturing capabilities of the Pearl River Delta Economic Zone and"Shenzhen Speed"to create high-quality products. Since 2020, we've cultivated positive collaborations with clients in Spain, Brazil, Colombia, Mexico, South Korea, and Indonesia. Continuously expanding our global presence, CaiLi forms lasting partnerships with key manufacturers, gaining top-tier credentials for leading brands. Our product portfolio spans FTTH, FTTx, PON, CATV/IPTV, and 3C components, enhancing overall competitiveness in the communication industry.
Caili is unwavering in its commitment to a market-driven, customer-centric philosophy, emphasizing quality excellence and collaborative success. Actively embracing the global market, we strive for harmonious development, benefitting the company, customers, employees, and society.
CaiLi provides a comprehensive range of telecommunication equipment, cables, and integrated solutions. Our expertise supports clients in successful FTTH, fiber optic, wireless, and network communication, CATV/IPTV broadcasting, and data center operations. Engaging in information system integration, technology research, and the development and sales of communication equipment and accessories, we conduct import and export business.
Driven by entrepreneurial passion and"Made in China"cost-effectiveness, CaiLi relies on the robust manufacturing capabilities of the Pearl River Delta Economic Zone and"Shenzhen Speed"to create high-quality products. Since 2020, we've cultivated positive collaborations with clients in Spain, Brazil, Colombia, Mexico, South Korea, and Indonesia. Continuously expanding our global presence, CaiLi forms lasting partnerships with key manufacturers, gaining top-tier credentials for leading brands. Our product portfolio spans FTTH, FTTx, PON, CATV/IPTV, and 3C components, enhancing overall competitiveness in the communication industry.
Caili is unwavering in its commitment to a market-driven, customer-centric philosophy, emphasizing quality excellence and collaborative success. Actively embracing the global market, we strive for harmonious development, benefitting the company, customers, employees, and society.

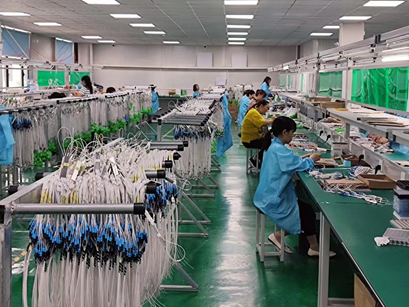

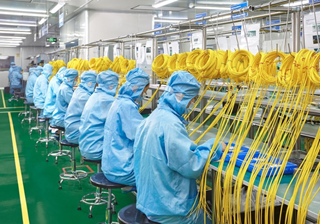

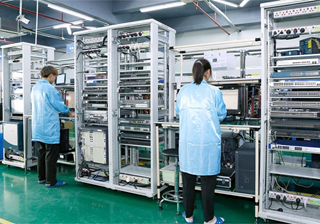

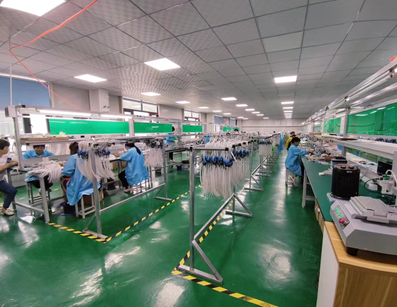

Our supply Capability
###
###
###
###
Our Partners
FAQ
1.What can i buy from you?
Optical fiber test equipments,cable preperation tools, fiber optic tool kits,fi- ber optic cleaning solutions,passive optical components.
2.Can I get a sample before mass production?
2.Can I get a sample before mass production?
Yes, we can supply some free samples of value under USD30, the buyer should bear all the shipping cost.
3.What is your payment way?
Alibaba Credit Insurance Order, T/T, L/C, Western Union and Paypal.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS.usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What about delivery time?
The delivery of most product is 3-7days,some few product is 7-10days.
6.What's the warranty time for the products?
We warranty 1 Year.
7.Can I visit you?
Sure, our company is in Shenzhen, China. Please contact us to make an appointment.
8.What language can be provided？
English/Chinese/Spanish/Korean;
3.What is your payment way?
Alibaba Credit Insurance Order, T/T, L/C, Western Union and Paypal.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS.usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What about delivery time?
The delivery of most product is 3-7days,some few product is 7-10days.
6.What's the warranty time for the products?
We warranty 1 Year.
7.Can I visit you?
Sure, our company is in Shenzhen, China. Please contact us to make an appointment.
8.What language can be provided？
English/Chinese/Spanish/Korean;
