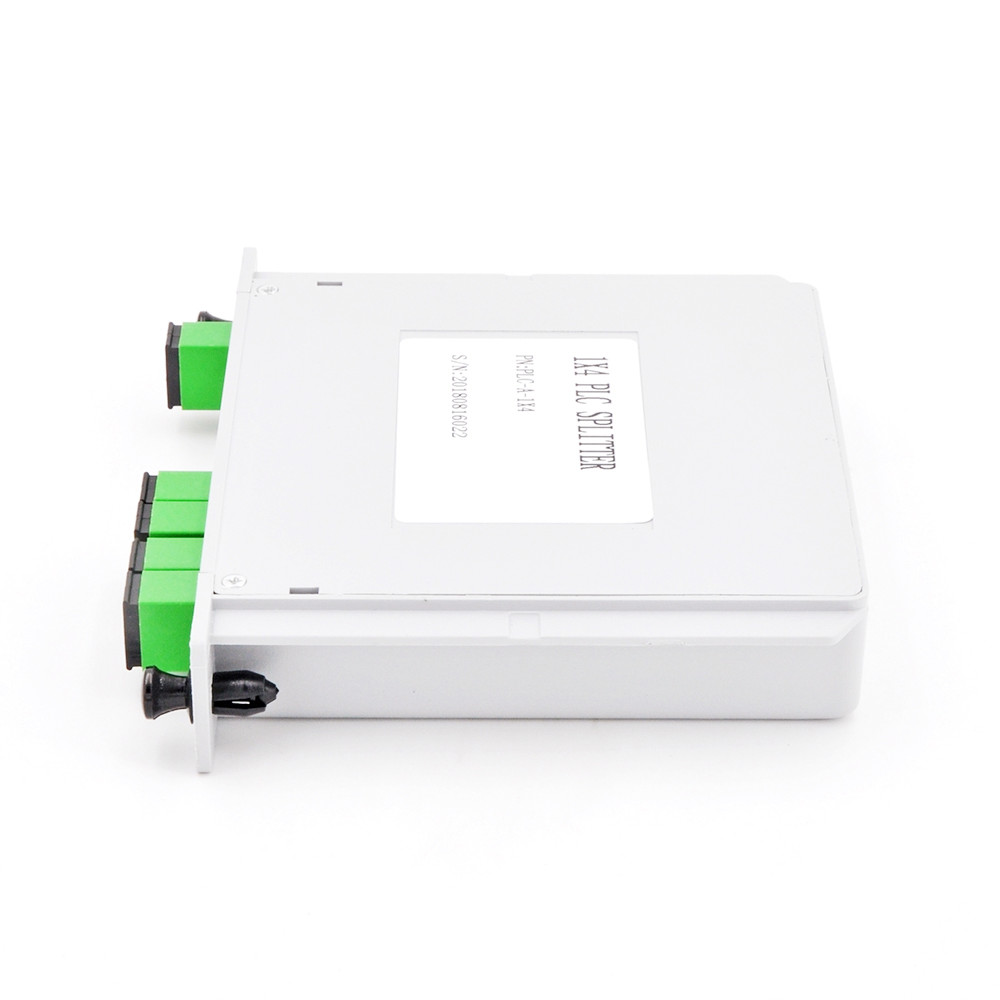

1*2 1*4 1*8 1*16 1*32 1*64 Spliter 1x2 1x4 1x8 1x12 1x16 1x32 1x64 1x128 ABS Box Mini PLC Cassette Fiber Optic Lgx Splitter
optical splitter
minimum order
1 piece
Quantity
$7.10 - $7.50 / piece
- Model Number:optical splitter
- Type:PLC splitter
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Use:FTTX
- Warranty Time:1 year
- Network:wifi, 4g, 3G, 5G

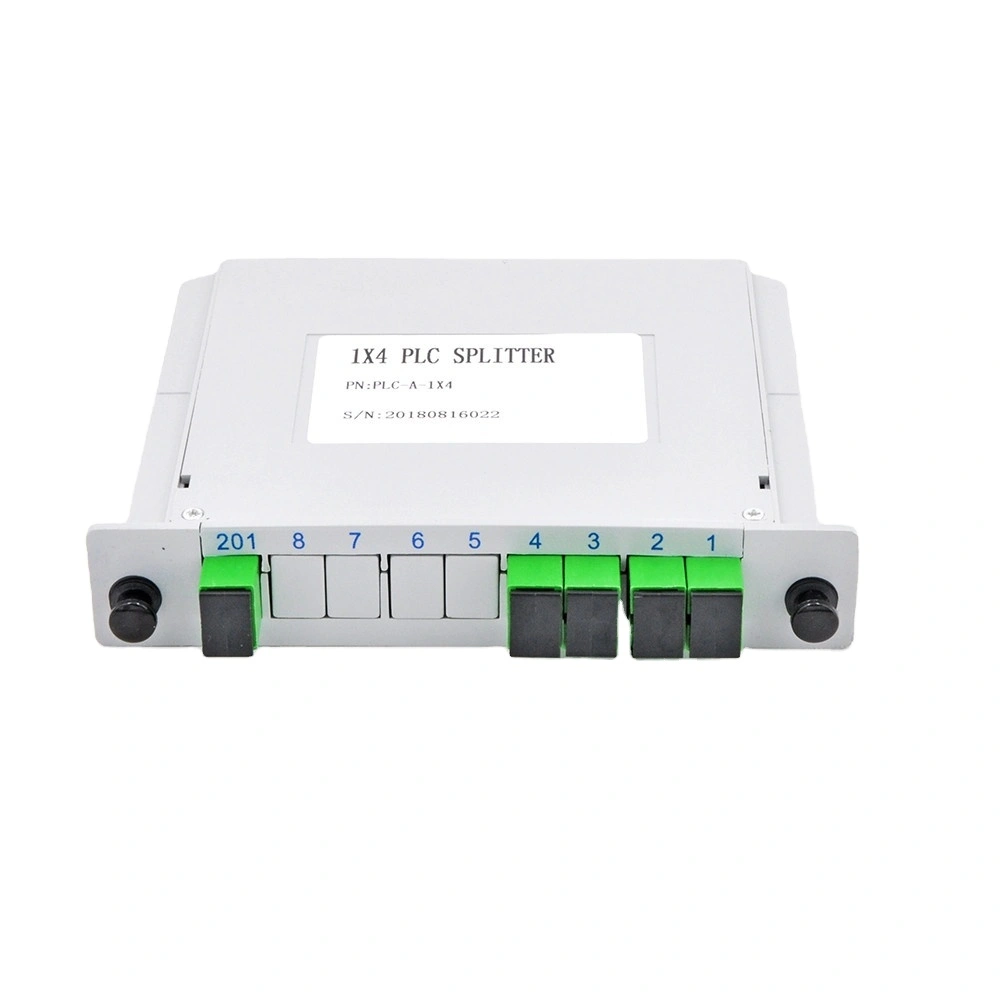

- Product name:FTTH LGX Cassette Type mini 1*4 1*8 1*16 1*32 Fiber Optic Plc Splitter
- Fiber type:G.657A,G652D or customized
- Port Configuration:1x2, 1x4, 1x8, 1x16, 1x32, 1x64
- Connector Type:SC,FC,LC,without connector or customized
- Pigtail Length:0.5m/1.0m/1.5m or customized
- Wavelength:1260nm~1650nm
- Packaging:Steel tube,ABS Box,Insertion
- Operating Temperature:-40~+85℃
- Return Loss(dB):≥50db
- Directivity (dB):≥55db
Product Description
Features:
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package
Application：
1.FTTx Systems
2.Digital, hybrid and AM-Video systems
3.LAN,WAN and Metro Networks
4.CATV systems
5.Other applictaions in fiber optic systems
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package
Application：
1.FTTx Systems
2.Digital, hybrid and AM-Video systems
3.LAN,WAN and Metro Networks
4.CATV systems
5.Other applictaions in fiber optic systems
Types | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | ||||
Test wavelength | 1310nm | ||||||||
Working wavelength | 1260nm~1650nm | ||||||||
Interface model | SC/UPC | ||||||||
Insertion loss (dB) (P/S level) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | ||||
Loss uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | ||||
Return loss (dB) (P/S level) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | ||||
Polarization dependent loss (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.25 | ||||
Directionality (dB) | 55 | 55 | 55 | 55 | 55 | ||||
Wavelength dependent loss (dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | ||||
Temperature stability (dB) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | ||||
Specification
item | value |
Model Number | optical splitter |
Type | PLC splitter |
Place of Origin | China |
Guangdong | |
Brand Name | OEM |
Use | FTTX |
Warranty Time | 1 year |
Network | wifi, 4g, 3G, 5G |
Product name | FTTH LGX Cassette Type mini 1*4 1*8 1*16 1*32 Fiber Optic Plc Splitter |
Fiber type | G.657A,G652D or customized |
Port Configuration | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 |
Connector Type | SC,FC,LC,without connector or customized |
Pigtail Length | 0.5m/1.0m/1.5m or customized |
Wavelength | 1260nm~1650nm |
Packaging | Steel tube,ABS Box,Insertion |
Operating Temperature | -40~+85℃ |
Return Loss(dB) | ≥50db |
Directivity (dB) | ≥55db |
Packing & Delivery
About CaiLi
Shenzhen CaiLi Telecommunications Technology Co., Ltd., founded on December 15, 2020, is headquartered in Shiyan Street, Shenzhen,China, known for its scenic landscapes. Positioned conveniently at the crossroads of Futian, Nanshan, and Longhua districts, the location ensures accessible transportation. Leveraging a decade of global experience, CaiLi entered the optical communication arena, focusing on international trade and cross-border e-commerce.
CaiLi provides a comprehensive range of telecommunication equipment, cables, and integrated solutions. Our expertise supports clients in successful FTTH, fiber optic, wireless, and network communication, CATV/IPTV broadcasting, and data center operations. Engaging in information system integration, technology research, and the development and sales of communication equipment and accessories, we conduct import and export business.

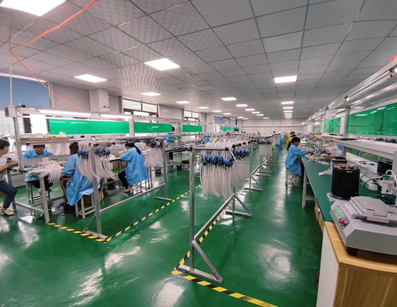

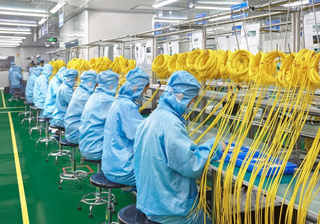

Driven by entrepreneurial passion and"Made in China"cost-effectiveness, CaiLi relies on the robust manufacturing capabilities of the Pearl River Delta Economic Zone and"Shenzhen Speed"to create high-quality products. Since 2020, we've cultivated positive collaborations with clients in Spain, Brazil, Colombia, Mexico, South Korea, and Indonesia. Continuously expanding our global presence, CaiLi forms lasting partnerships with key manufacturers, gaining top-tier credentials for leading brands. Our product portfolio spans FTTH, FTTx, PON, CATV/IPTV, and 3C components, enhancing overall competitiveness in the communication industry.
