10pcs~200pcs L925B L925BP Fiber Optic Quick Connector Optical Fiber Mechanical Splice For Drop Cable Optic Assembly
- Model Number:L925BP, L925b Fiber Optic Quick Connector
- Type:Other
- Place of Origin:Guangdong, China
- Brand Name:OEM, AnnLinkee
- Use:FTTH
- Warranty Time:1 year
- Network:None
- Size:10*10*10
- Fiber Type:Single Mode
- Compatible:Ubiquiti
- Connector Type:Hybrid
- Item Length:1m
- Origin:Mainland China
- Certification:CE
| More types, please click to buy | |||

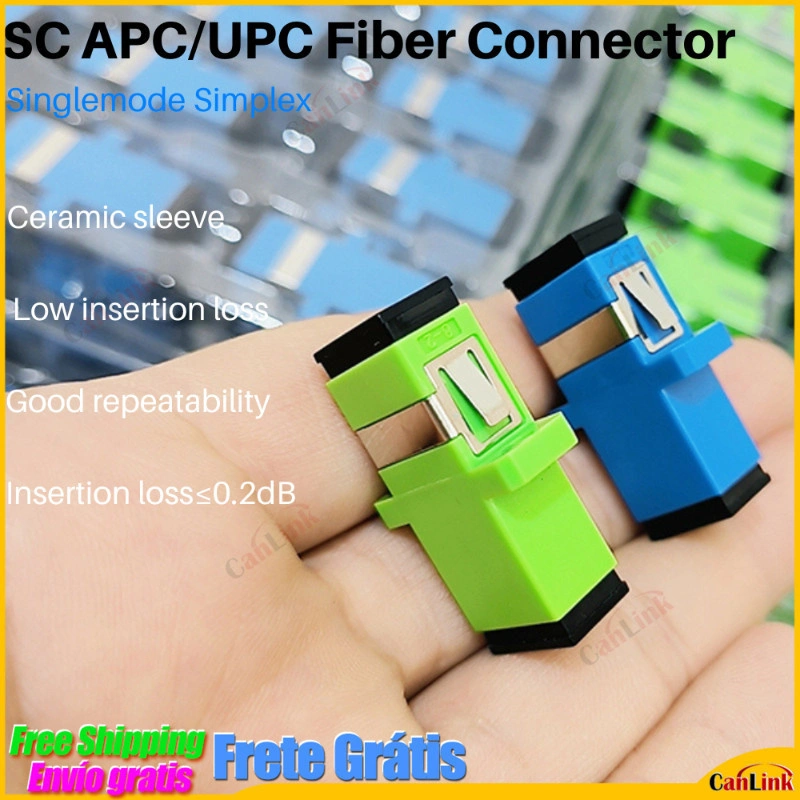

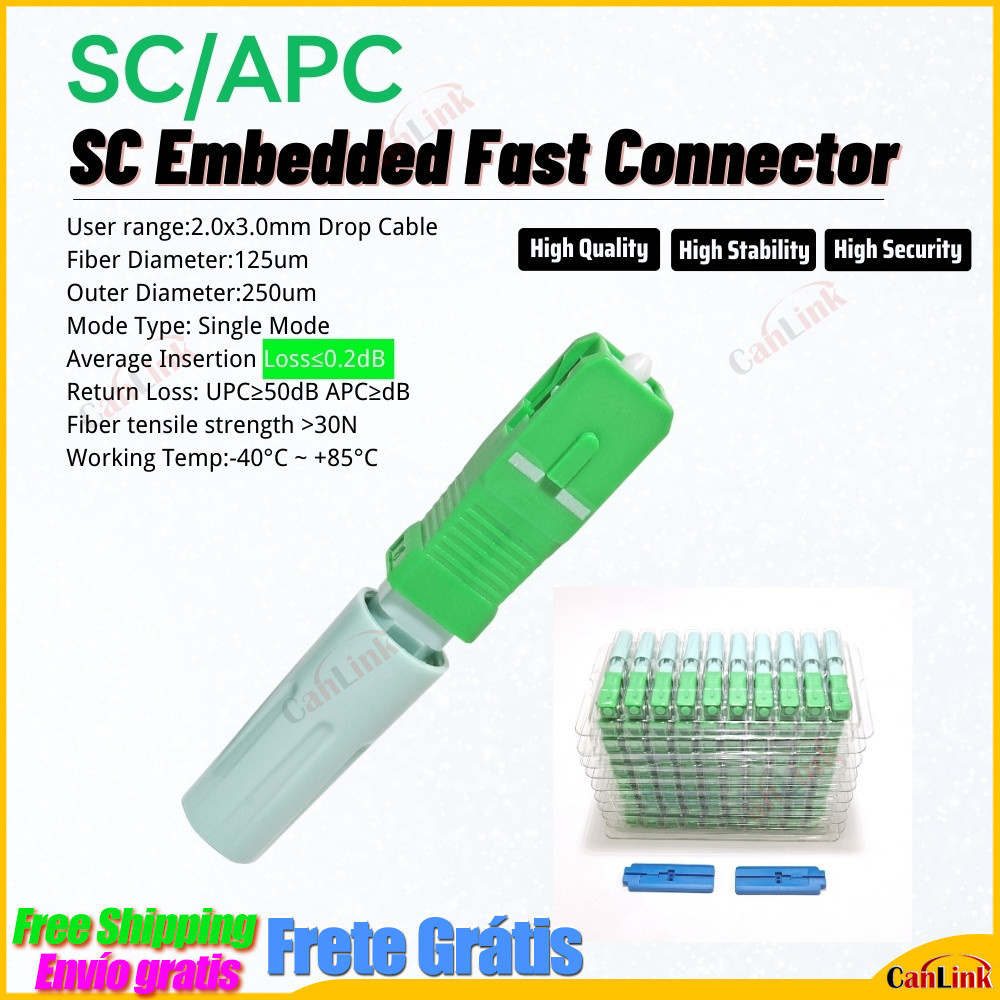

| L925B | L925BP | SC APC | SC PC |
 |  |  |  |
| 20pcs 16.96 USD | 10-200pcs 10.07-130.73 USD | 50-200pcs 23.9-72 USD | 50-200pcs 22.9-68 USD |

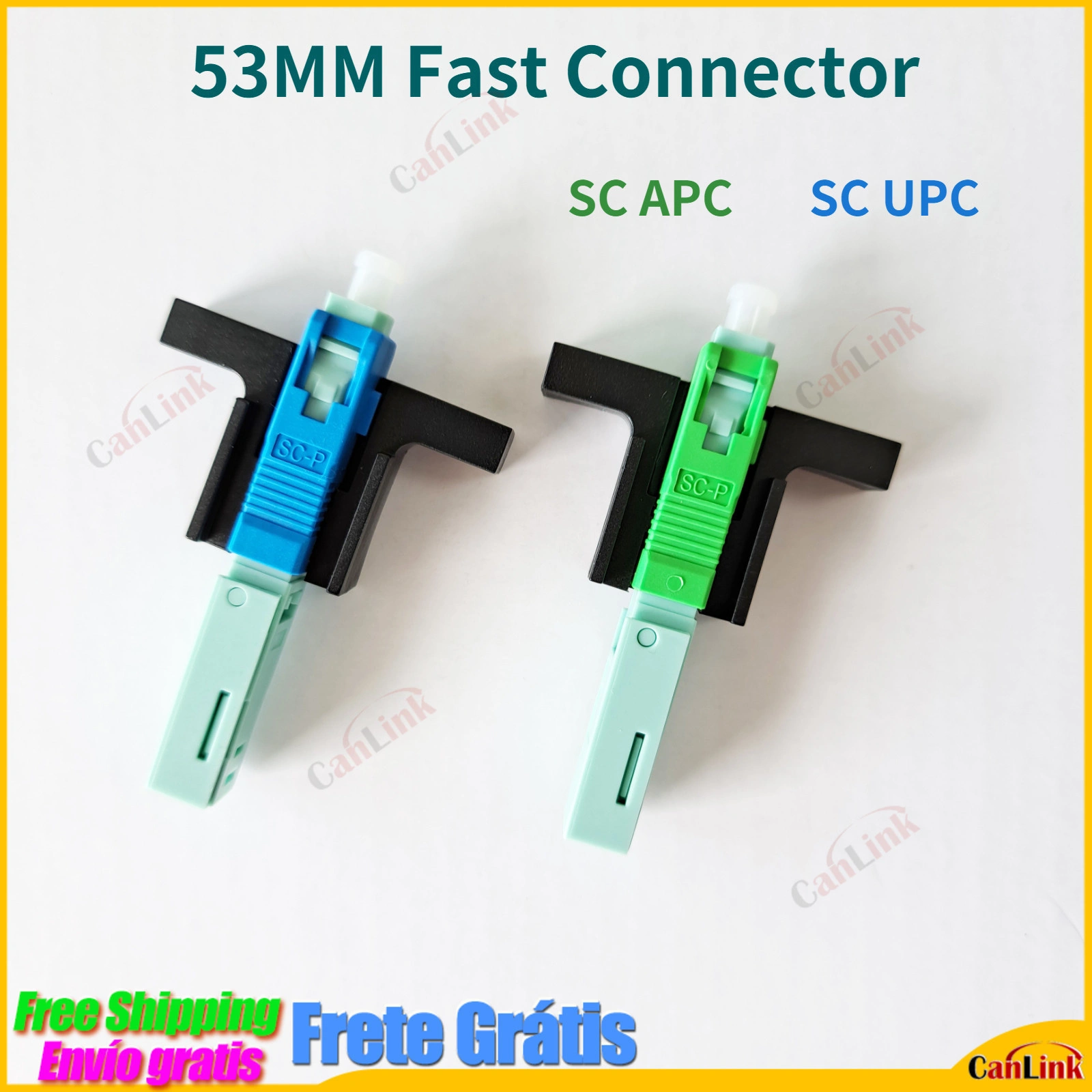

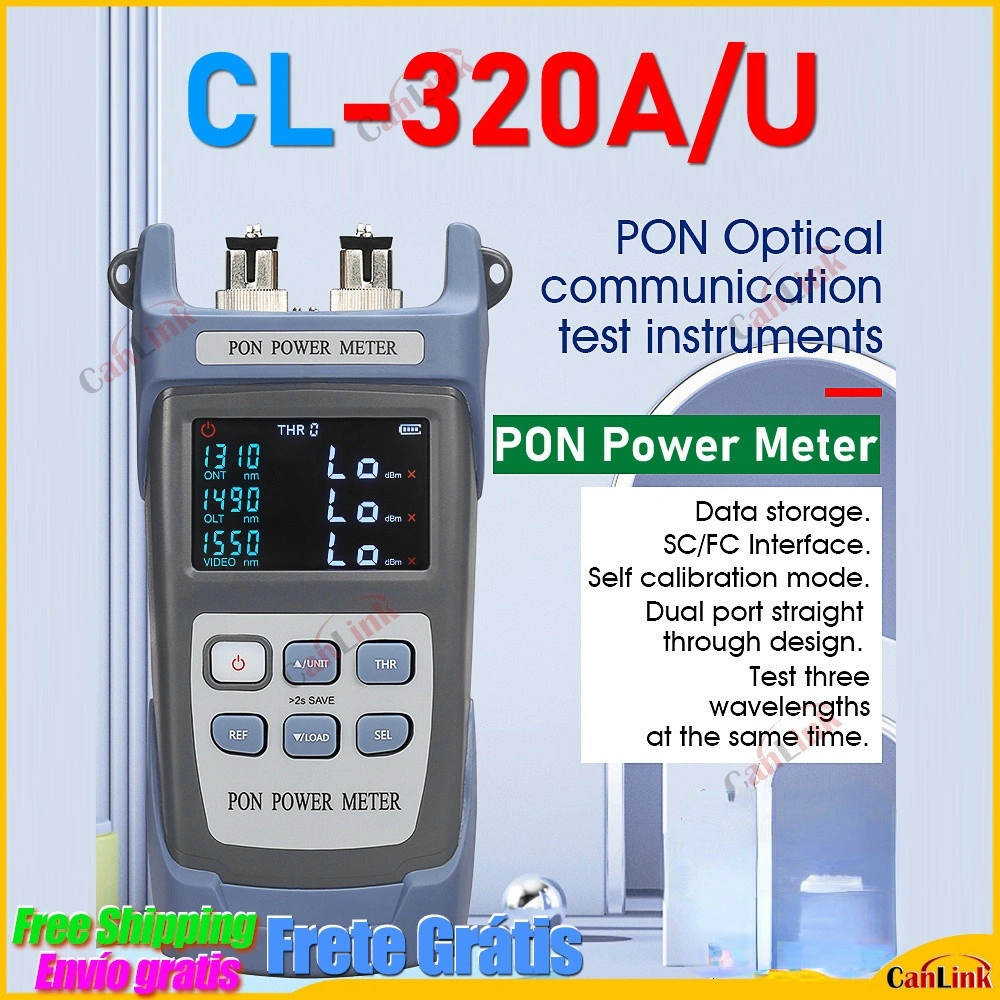

| 53mm | Adapter | OPM/VFL | PON OPM |
 |  |  |  |

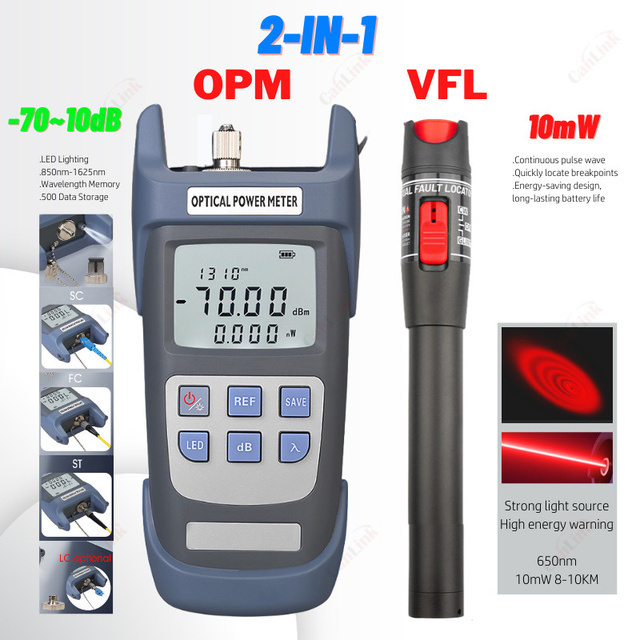

| 50-300pcs 28.78-166.99 USD | 50-500PCS 9.49-66.9 USD | OPM(-70+6) VFL 10mW 20.6USD | 67.1-69.42 USD |

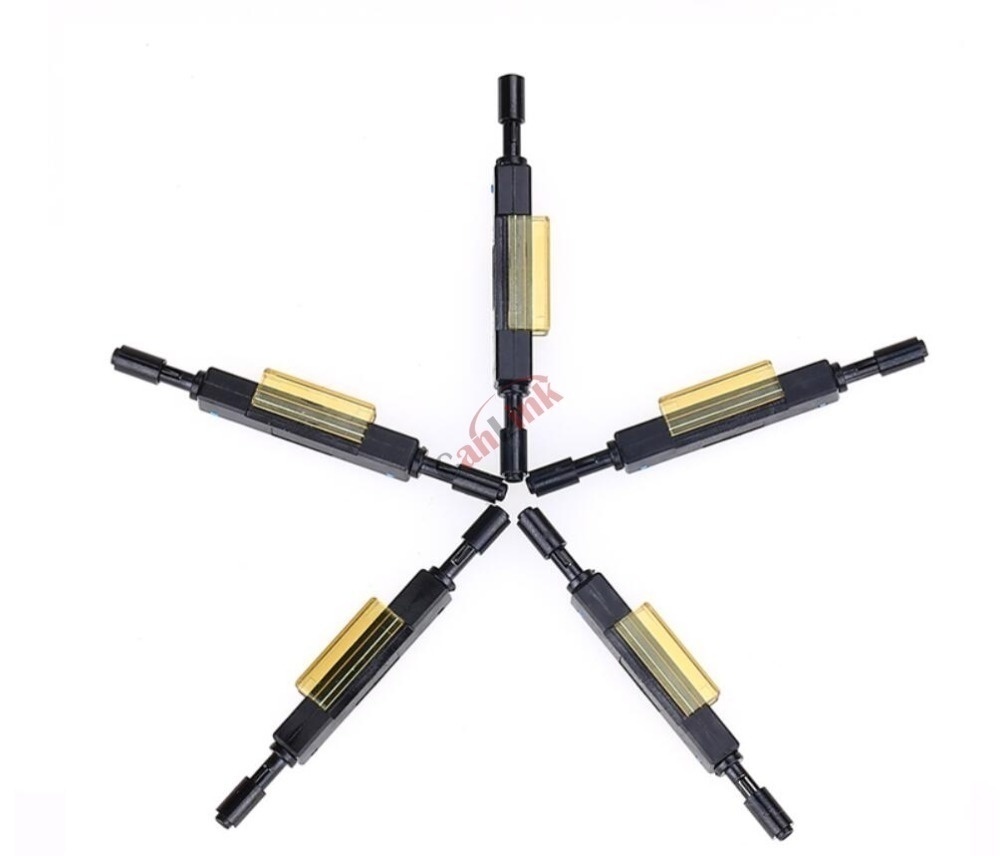

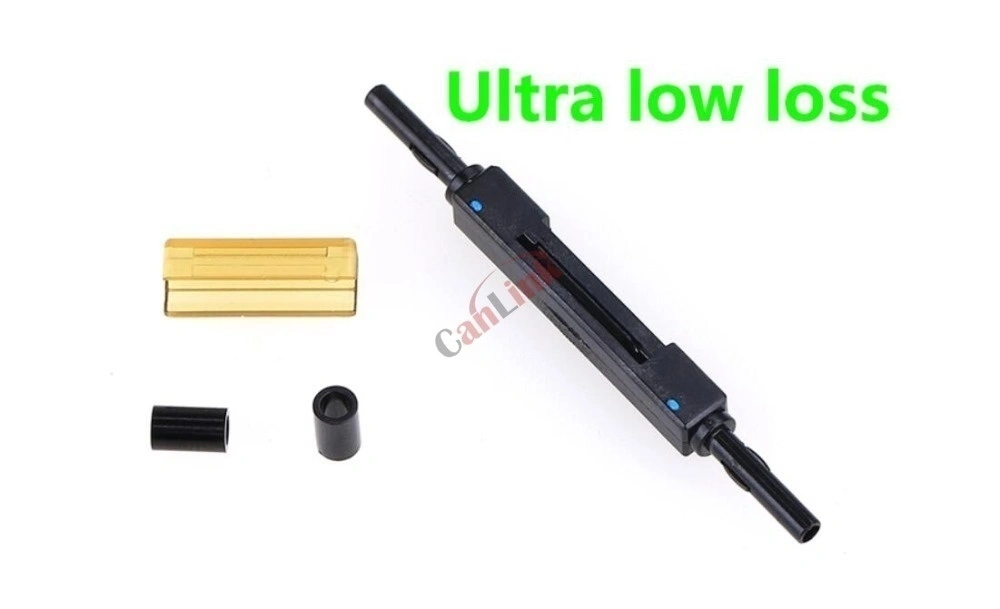

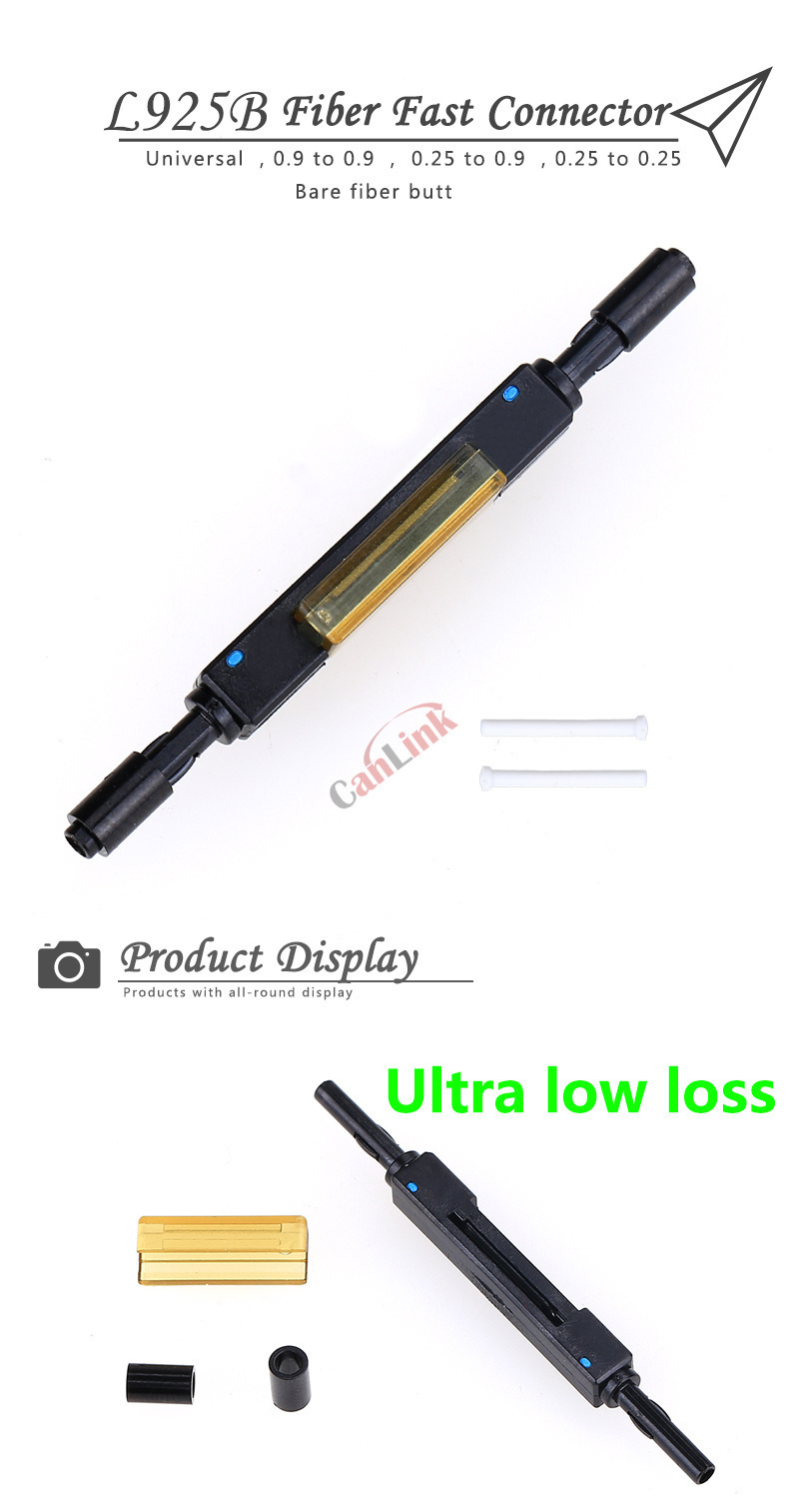

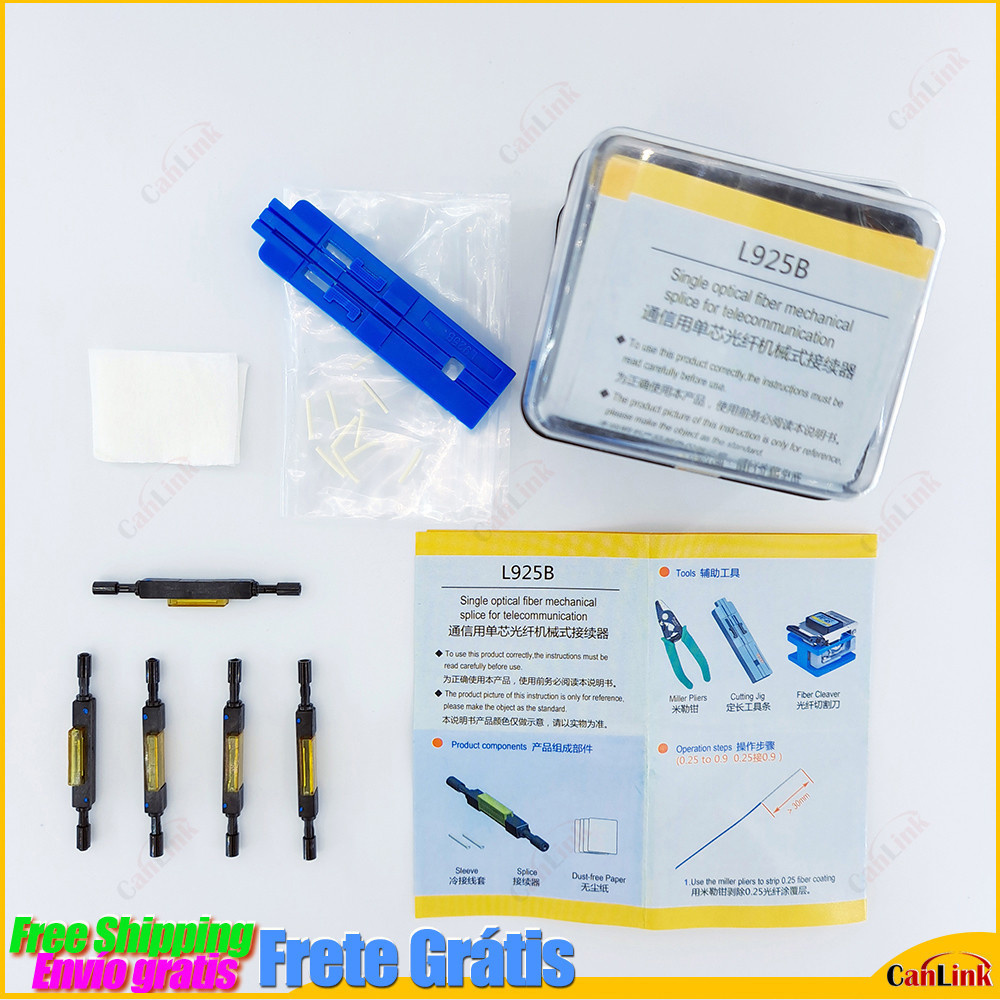

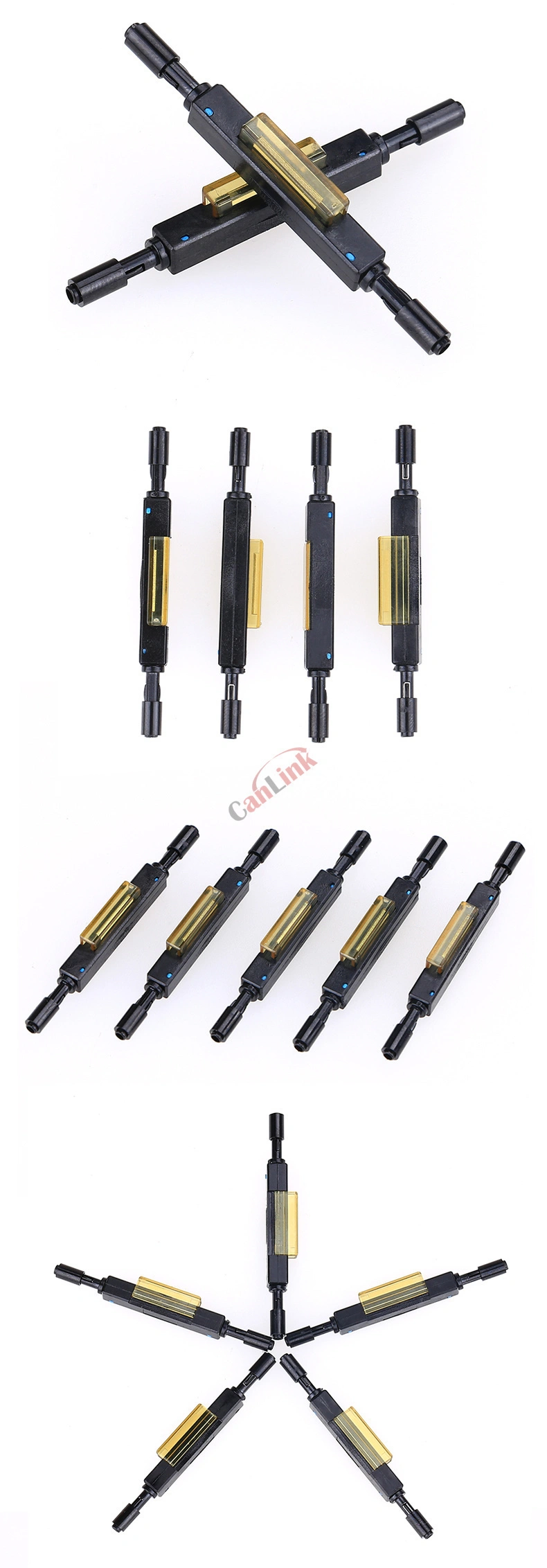

Product 1,L925B
One. Product Description:
1, Metal V groove design, optical fiber butt precision is high, technical indicators are excellent.
2, The box structure design, good sealing performance, matching fluid is not easy to lose, weather resistance is strong;

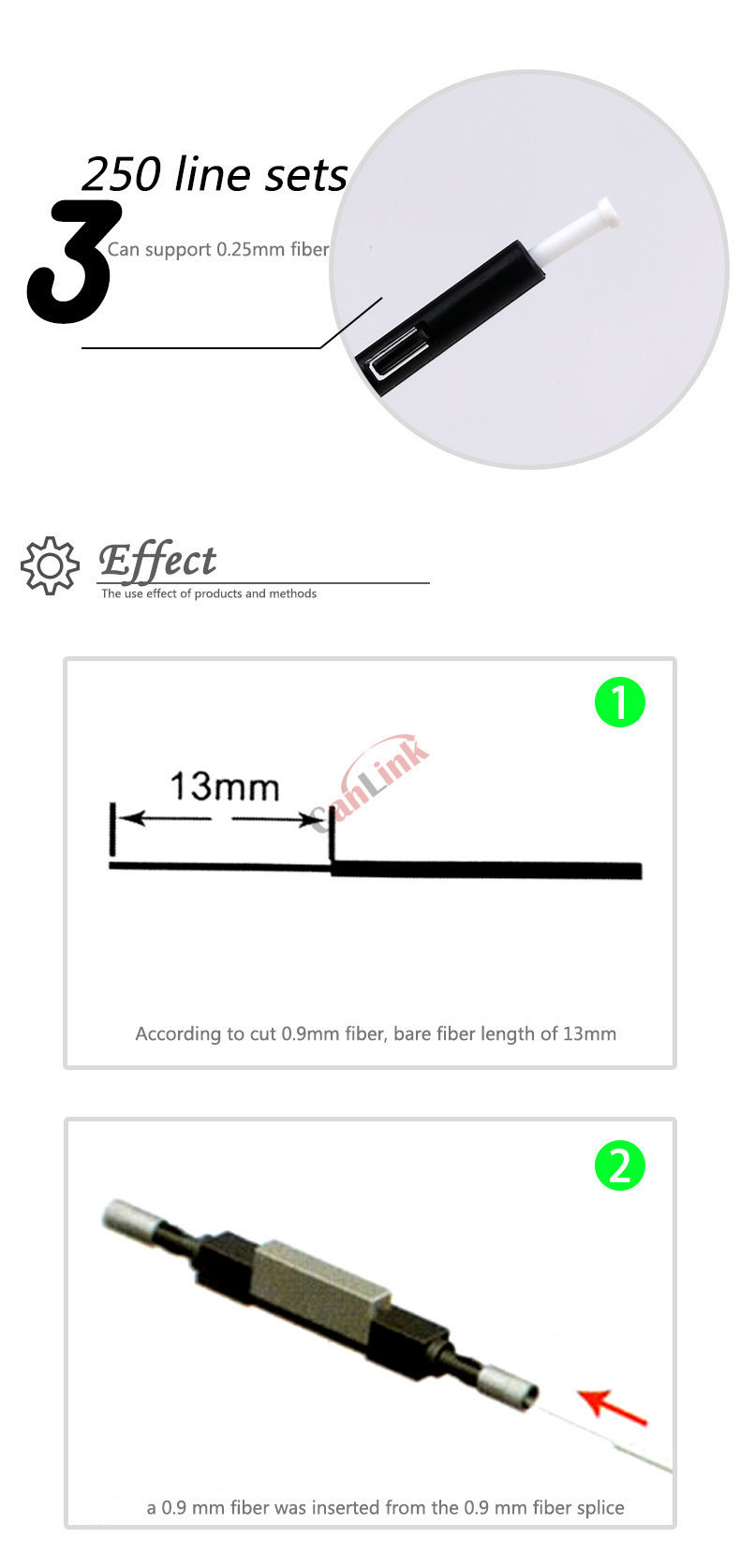

3, Suitable for any combination of 0.25mm optical fiber and 0.9mm optical fiber.
4, Simple operation, fast construction speed, high success rate of installation, long life cycle, simple and convenient maintenance later.
5, It can be used in FTTH engineering and optical cable repair.

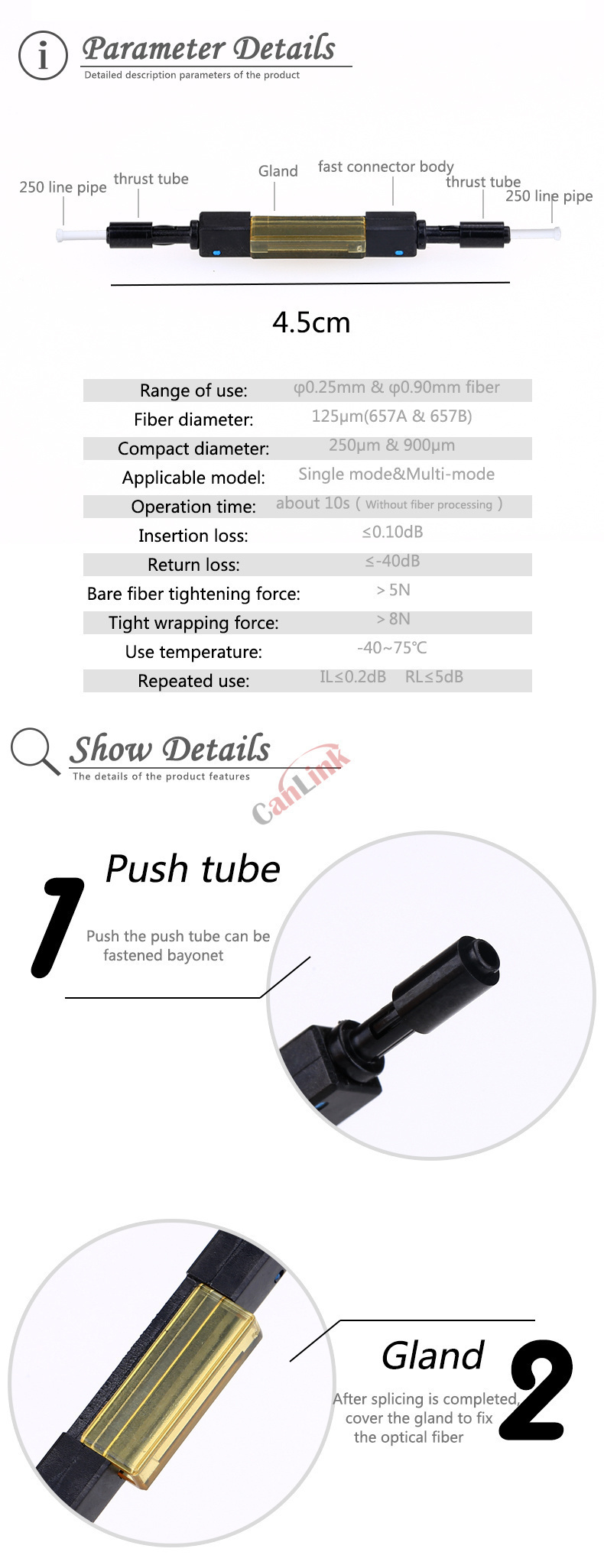

Two. Product Technical Indicators:
Insertion loss: dB < 0.20
Echo loss: dB >40
Tensile strength: N/2min >10
Working temperature: -40 ~ +85
Repeat assembly: times greater than 10
Applicable optical cable: 0.25mm 0.9mm optical fiber
Product size: 45.3mm x 4.6mm x 4mm

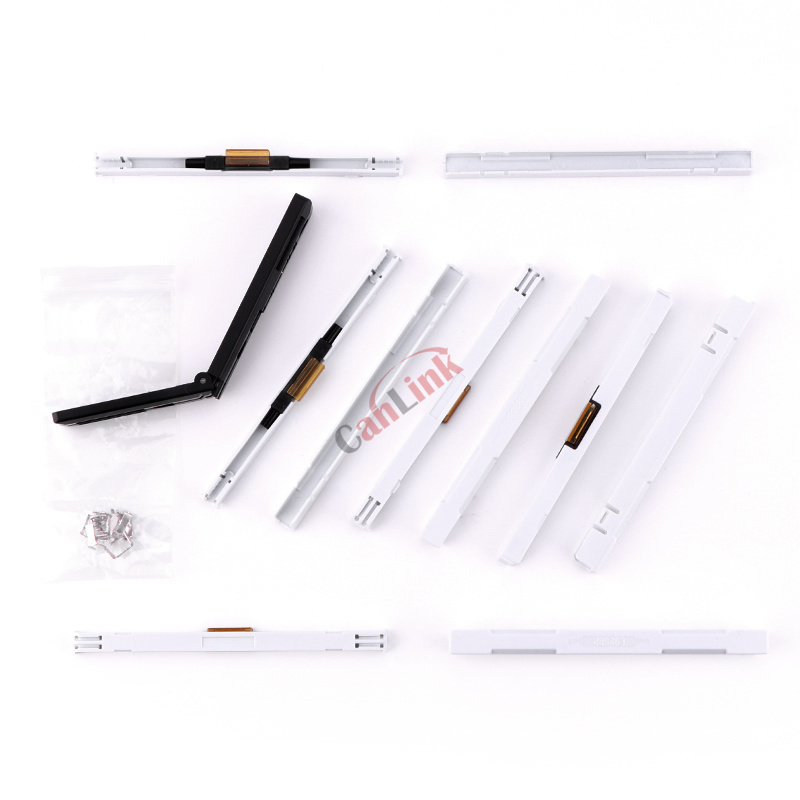

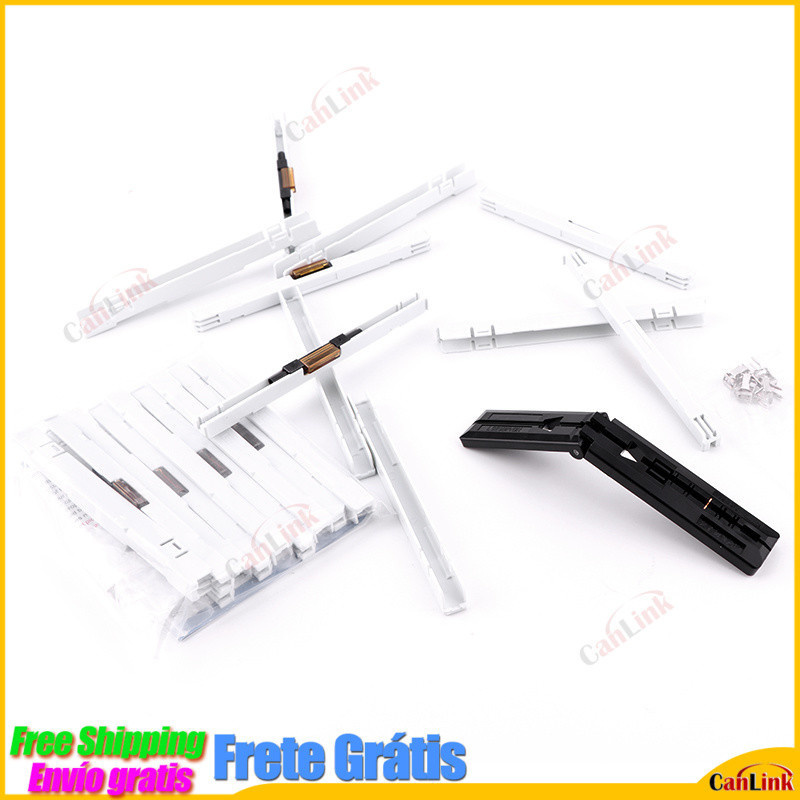

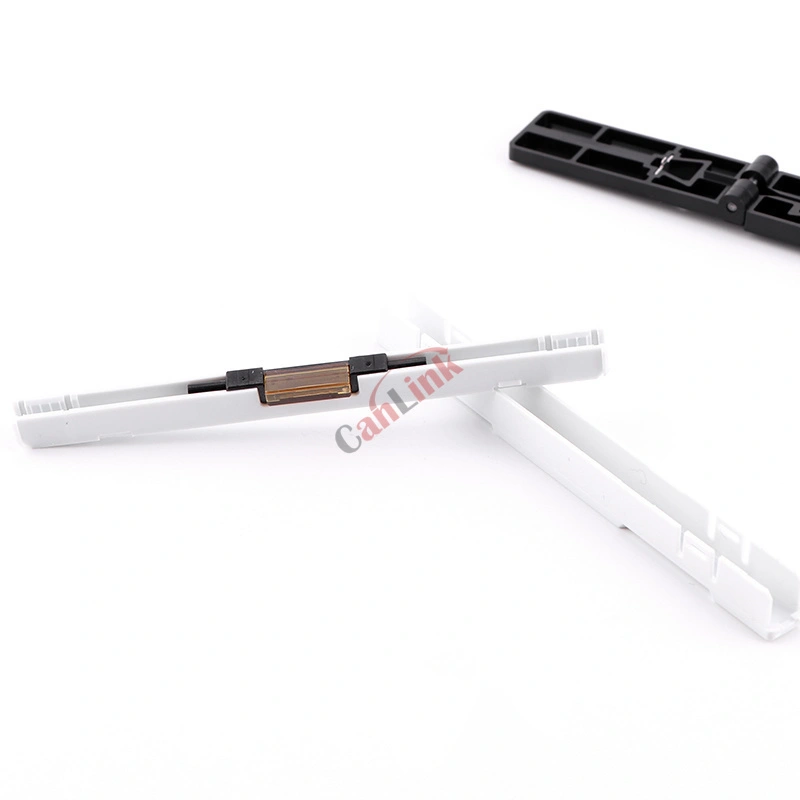

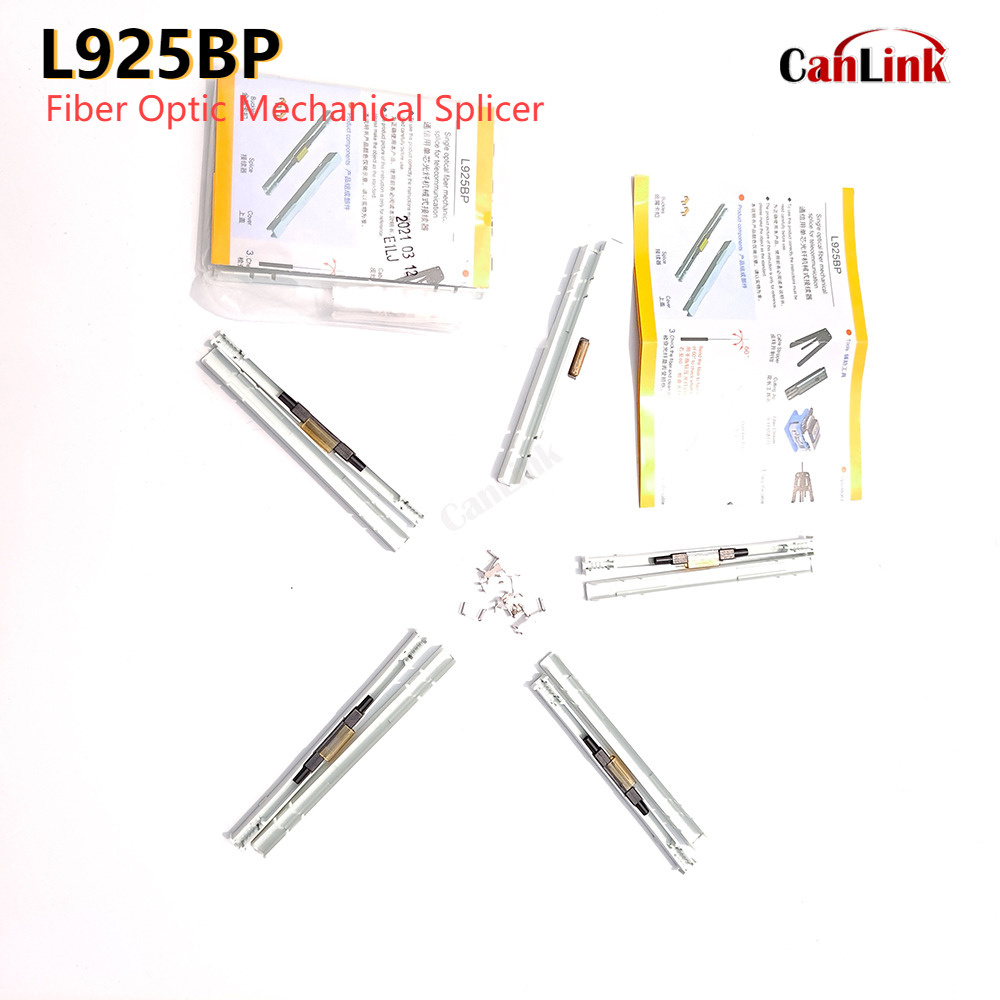

Product 2,L925BP
Features
1. Based on unique box-building crimping technology.
2. Axially firm fitting of optical fibers, reducing any performance degradation due to loss in the matching gel.
3. Uninterrupted fitting and connecting technology, hence signals are free of impact from external force.
4. The naked fiber, tight buffer and cable, etc., can fully meet the environmental requirements from the terminals customer
5. Applicable for FTTx optical fiber splicing and for repairing any damaged lines to realize firm and reliable splicing of fibers.
6. Aim to the damaged cable( snap, damaged by rats) and also be used in the corridor .
Specifications
Applicable for | 3.1*2.0 drop cable |
Fiber Optic Diameter | 125μm(657A-657B) |
Tight Buffer Diameter | 250μm |
Application mode | single mode and multimode |
Operating time | About 30s (no fiber processing) |
Insertion Loss | ≤0.15dB(1310nm & 1550nm) |
Return Loss | ≥-40dB |
Bare tightening force | >5N |
Tight wrap clamping force | >8N |
Operating Temperature | -40~+75°C |
