New L925BP FTTH Tool Fiber Optic Mechanical Splice Fiber Fixed Length Stripper Coating Layer Fixed Length Guiding fast connector
- Model Number:L925BP Coating Layer Fixe
- Type:Fast Connector
- Place of Origin:Guangdong, China
- Brand Name:CaiLi
- Use:FTTX
- Warranty Time:5 YEARS
- Network:TCP, GPRS, wifi
Features:
1. Based on unique box-building crimping technology.
2. Axially firm fitting of optical fibers, reducing any performance degradation due to loss in the matching gel.
3. Uninterrupted fitting and connecting technology, hence signals are free of impact from external force.
4. The naked fiber, tight buffer and cable, etc., can fully meet the environmental requirements from the terminals customer
5. Applicable for FTTx optical fiber splicing and for repairing any damaged lines to realize firm and reliable splicing of fibers.
6.Aim to the damaged cable( snap, damaged by rats) and also be used in the corridor .

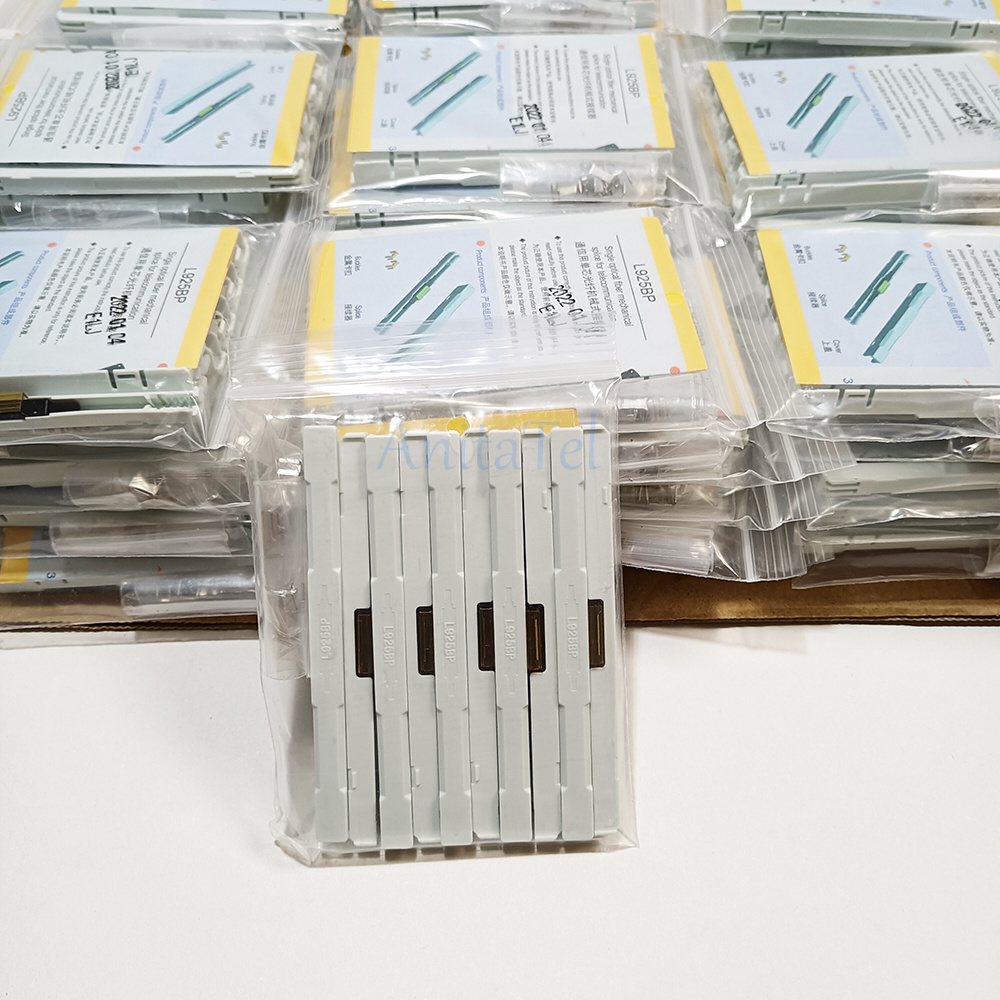

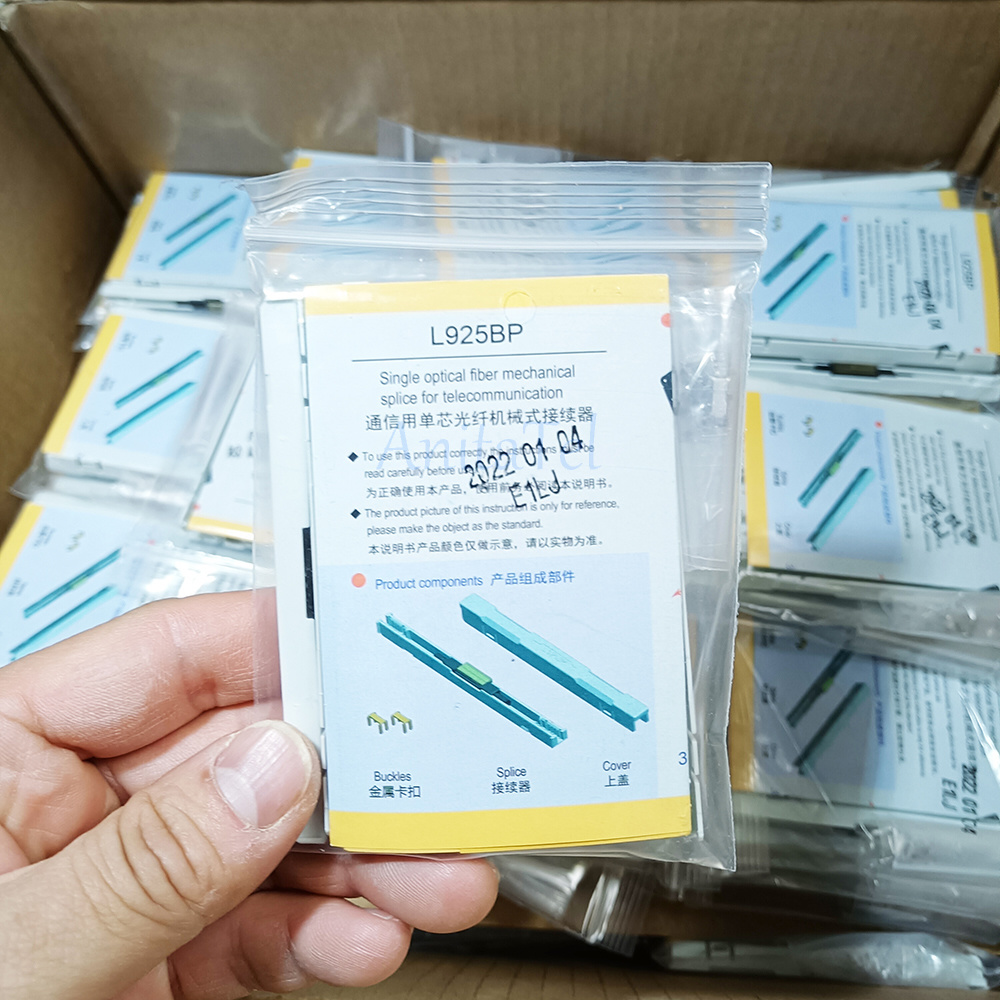

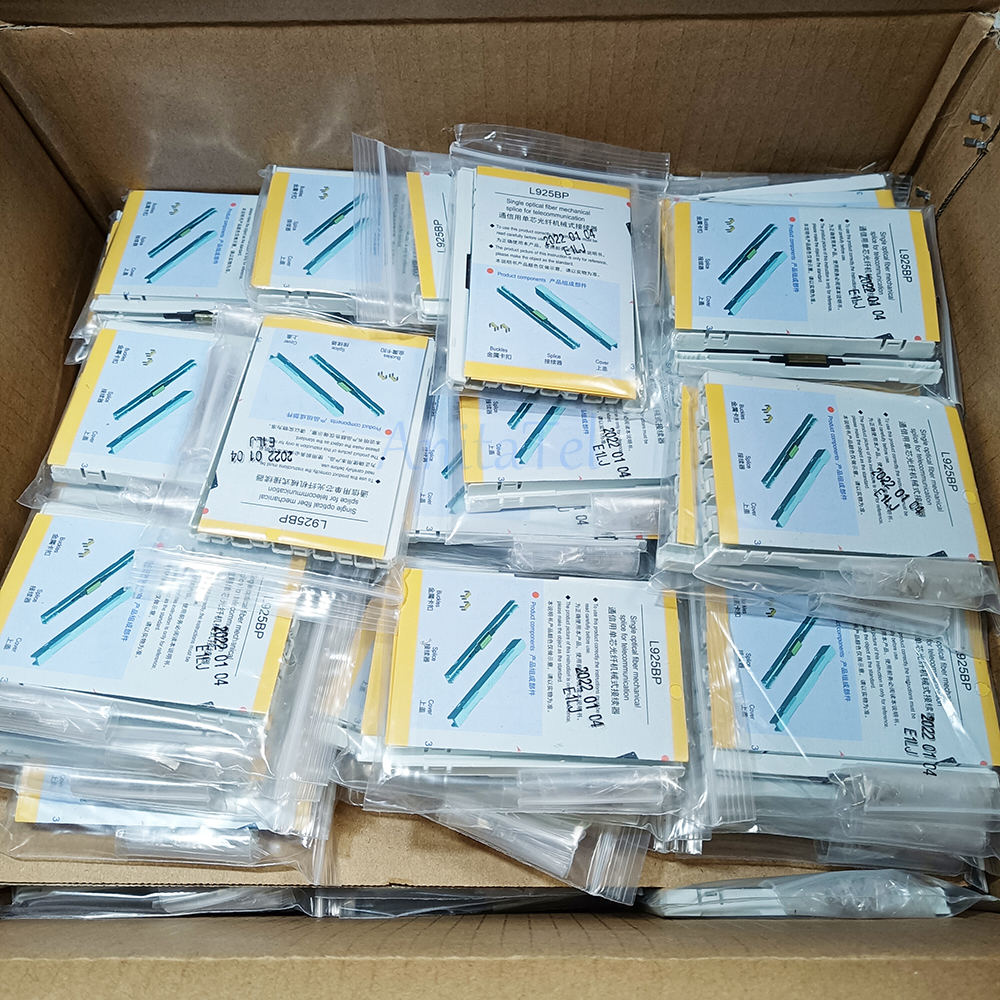

Package includes: 5* L925BP Connector
Specifications
Applicable for | 3.1*2.0 drop cable |
Fiber Optic Diameter | 125μm(657A-657B) |
Tight Buffer Diameter | 250μm |
Application mode | single mode and multimode |
Operating time | About 30s (no fiber processing) |
Insertion Loss | ≤0.15dB(1310nm & 1550nm) |
Return Loss | ≥-40dB |
Bare tightening force | >5N |
Tight wrap clamping force | >8N |
Operating Temperature | -40~+75°C |
Package includes | 5/10/50/100 * L925BP Connector |
