10-200pcs L925BP Drop Cable FTTH Splice Fiber Optic Mechanical Splicer Fast Connector Upgrade Flexer butt Cold Splice Bare fiber
L925BP
minimum order
1 piece
Quantity
$0.38 - $0.50
/ piece
- Model Number:L925BP
- Type:Fiber Optic Cable
- Place of Origin:Guangdong, China
- Brand Name:CaiLi
- Use:FTTX
- Warranty Time:1 YEAR
- Network:Wireless Lan, Wired LAN, TCP, GPRS, wifi, 4g
Product Description

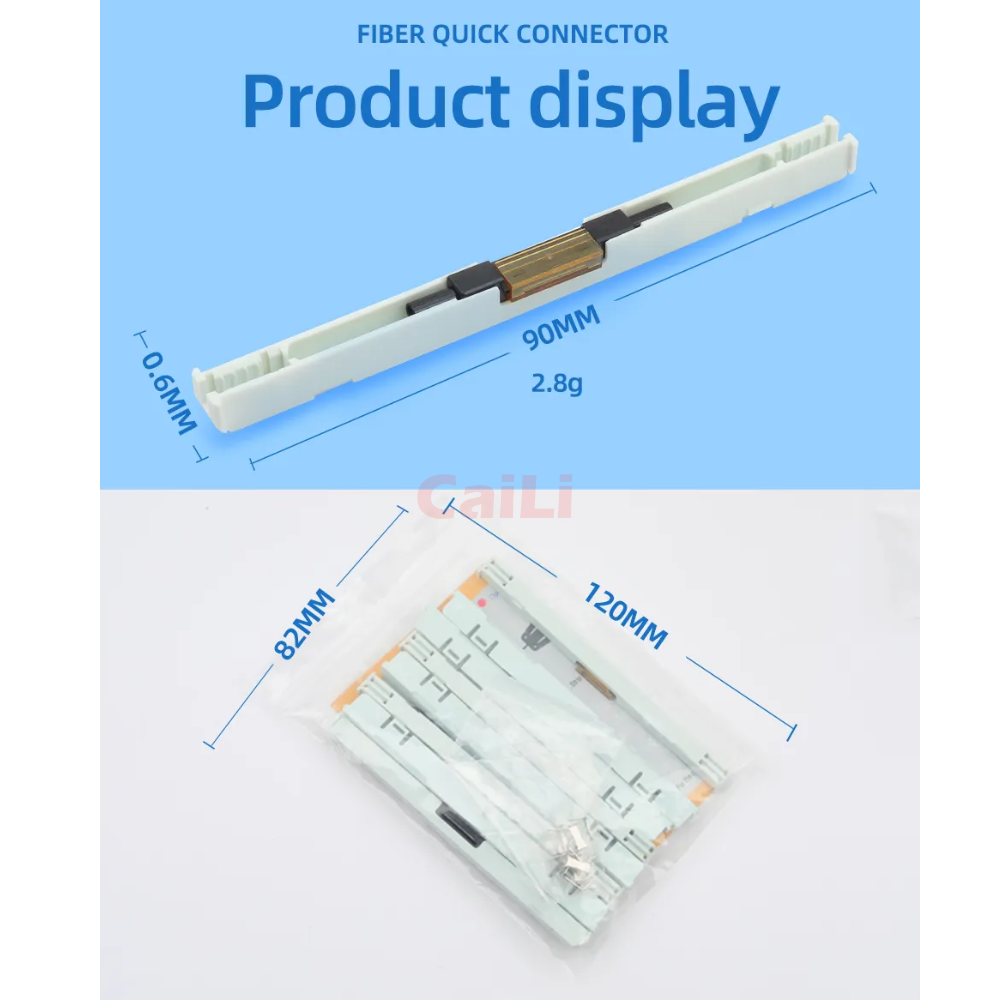

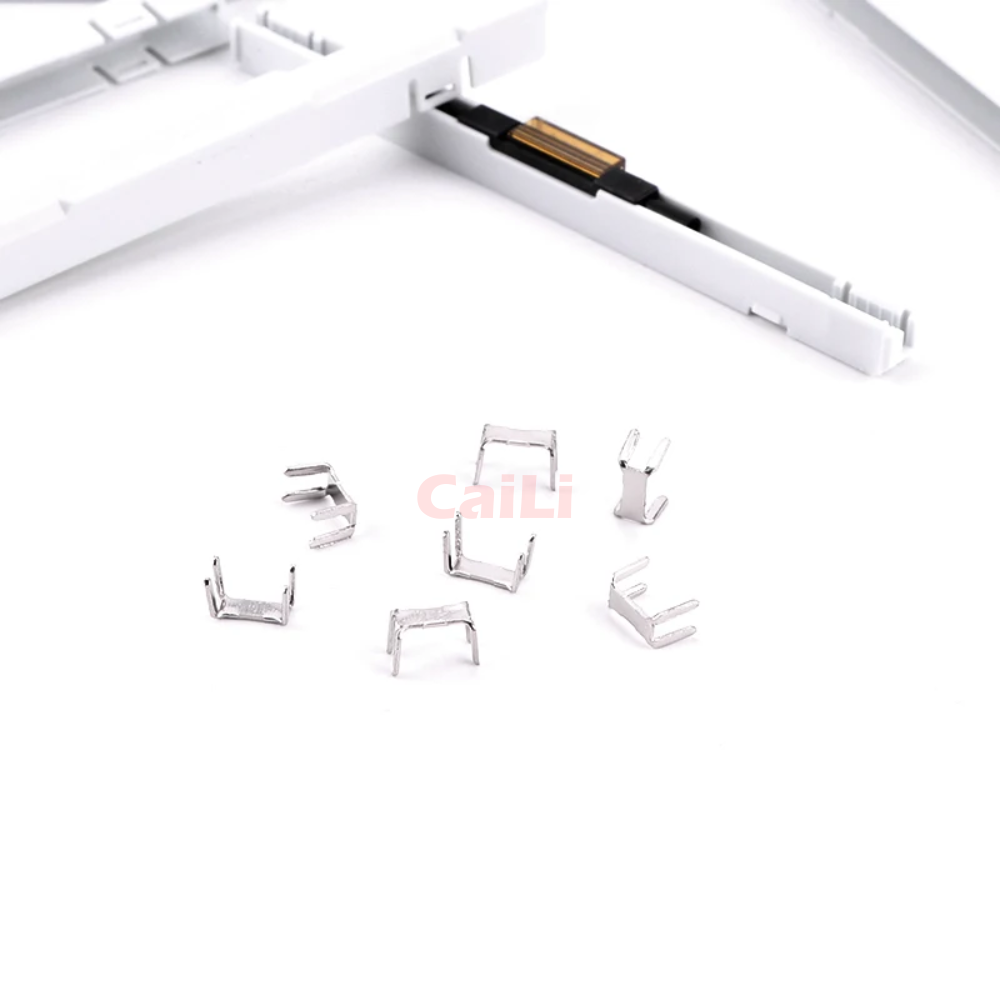

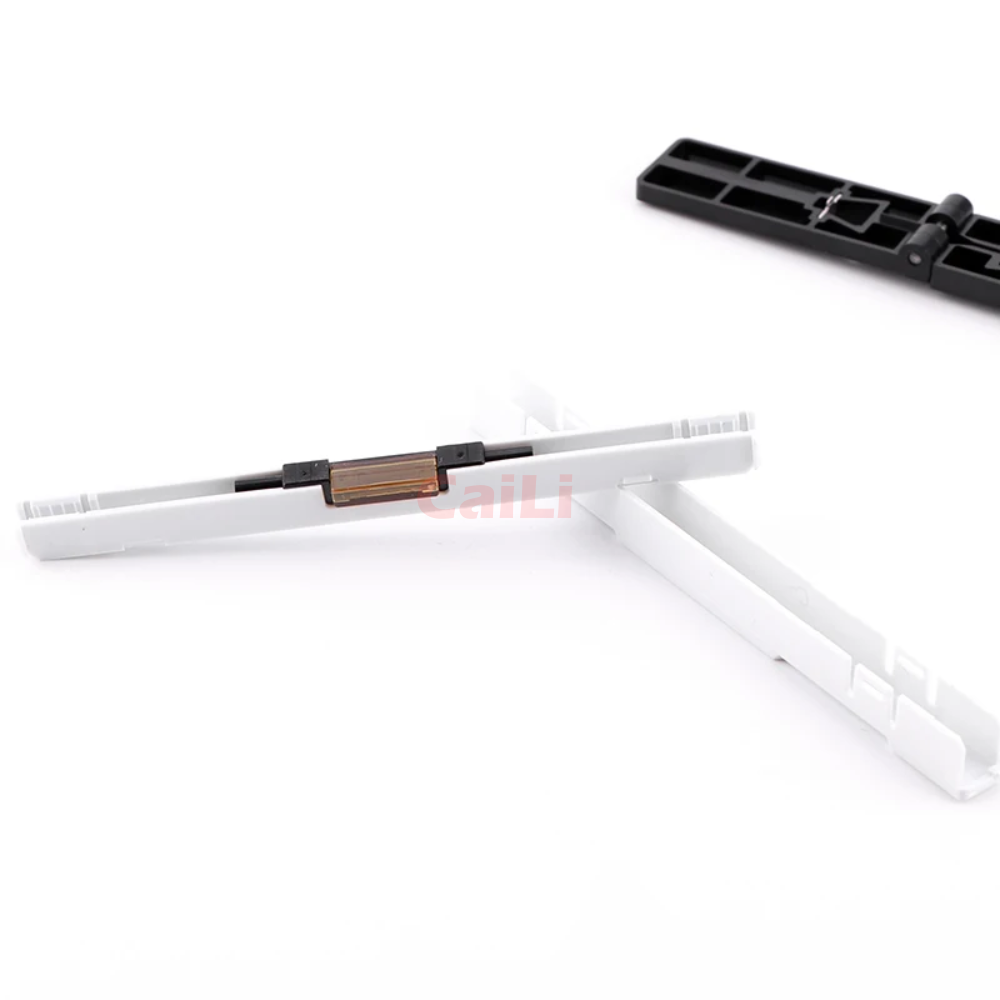

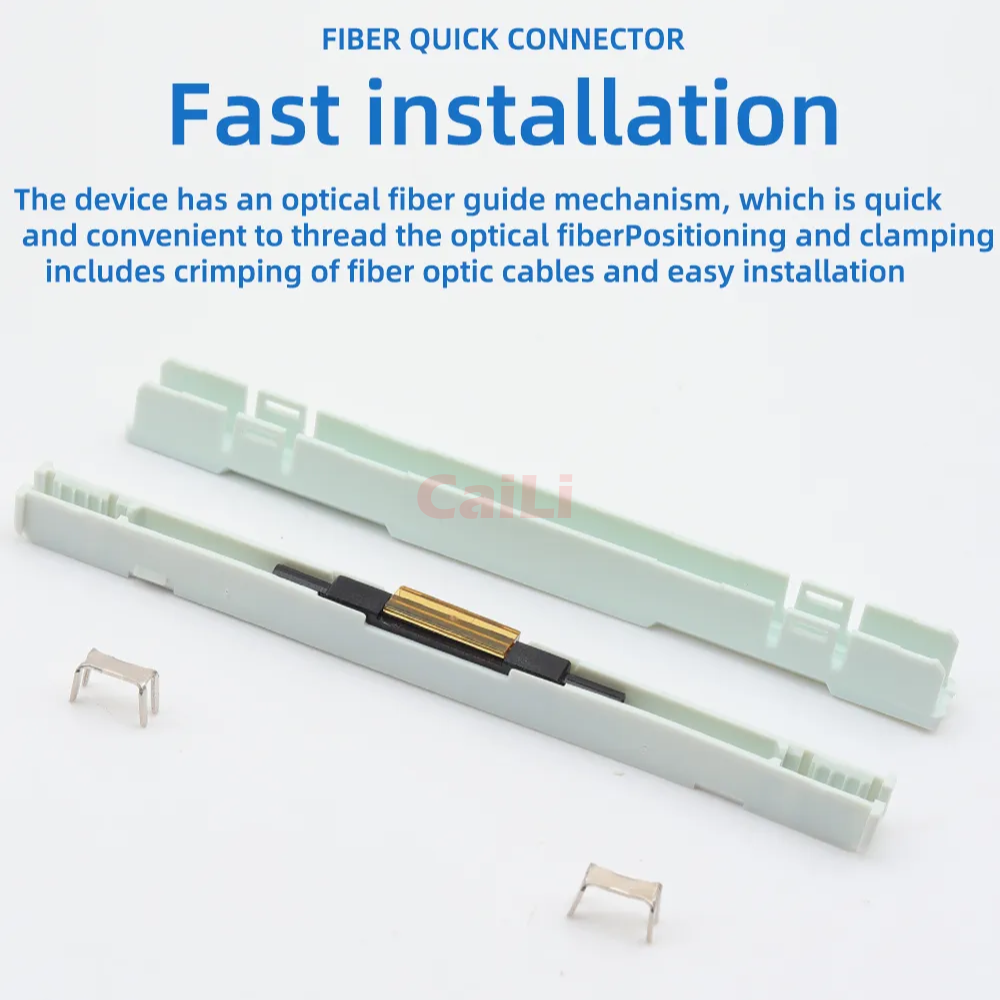

L925BP Drop Cable FTTH Splice Fiber Optic Mechanical Splicer Fast Connector Upgrade Flexer butt Cold Splice Bare fiber

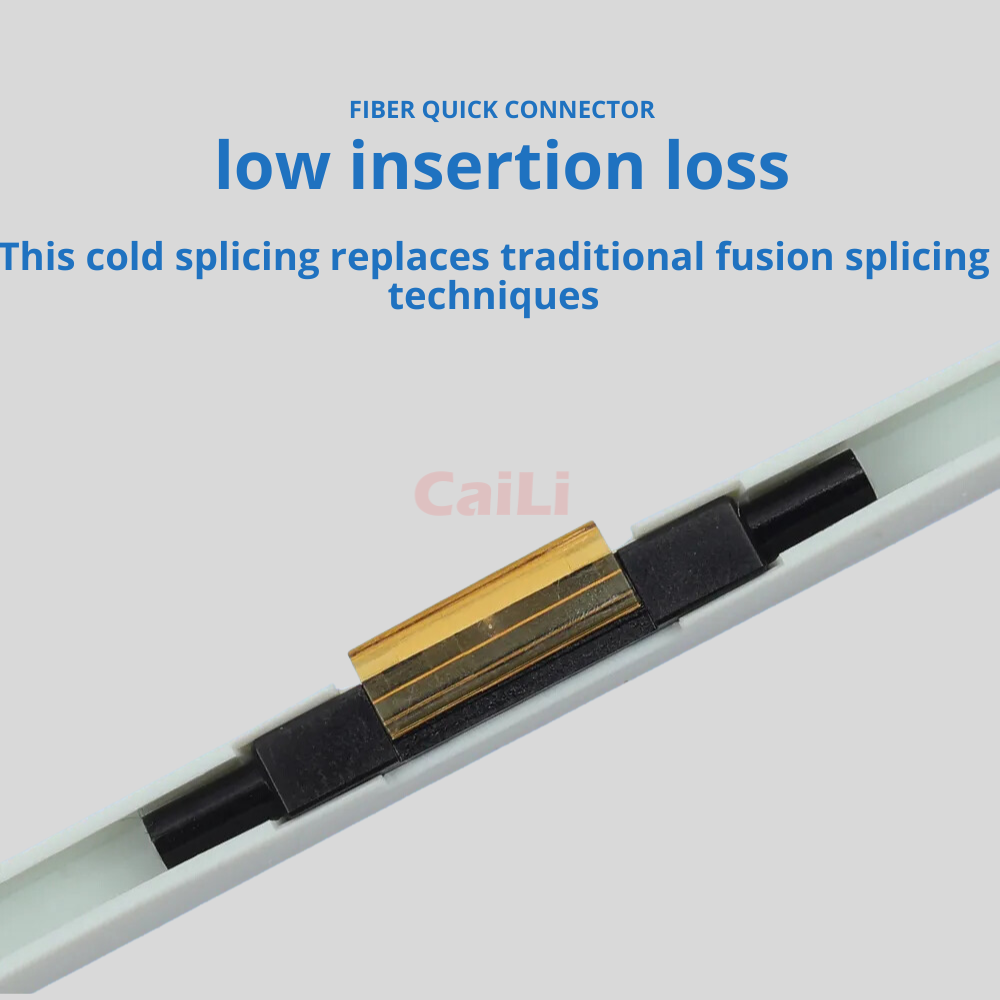

Applicable to home butterfly cable and any type Flexer pigtail connection, cost saving; using V slot docking technology is mature, suitable for multimode fiber connection; free fixture design, operation time is less than a minute.
Flex cable households into the end of direct access to the ONU, tension is greater than 5KG. The utility model has the advantages of wide application range, and is especially suitable for the network upgrade of the existing residential areas and the
reconstruction of the optical fiber network. The utility model reduces the use of a panel box and a supporting flange, not only reduces the cost of the optical fiber access, but also the operation is simple and convenient.
Applicable to home butterfly cable and any type Flexer pigtail connection, cost saving; using V slot docking technology is mature, suitable for multimode fiber connection; free fixture design, operation time is less than a minute.
Flex cable households into the end of direct access to the ONU, tension is greater than 5KG. The utility model has the advantages of wide application range, and is especially suitable for the network upgrade of the existing residential areas and the
reconstruction of the optical fiber network. The utility model reduces the use of a panel box and a supporting flange, not only reduces the cost of the optical fiber access, but also the operation is simple and convenient.
All kinds of collocation can be combined (SC, FC, fiber LC, ST etc.)

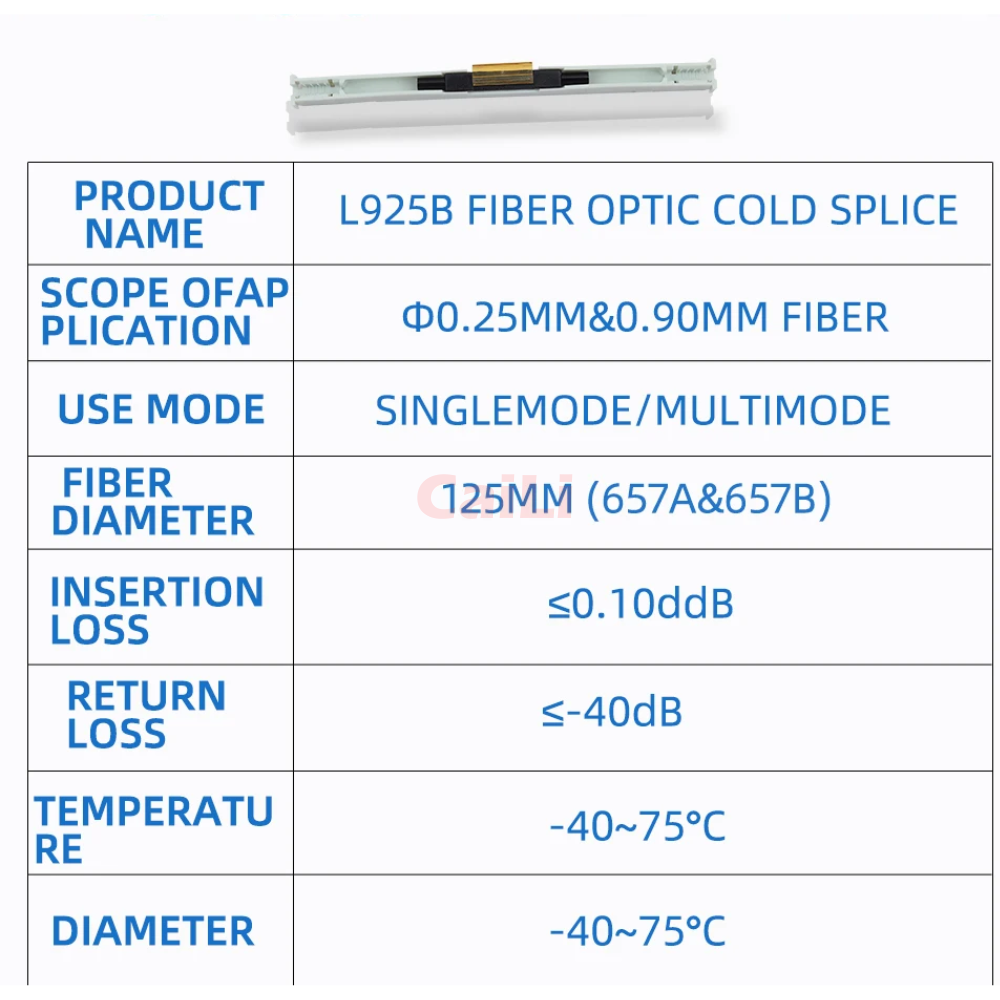

technical standard
Scope of application: 3.1 x 2.0mm dish optical cable
Fiber diameter: 125 μm (657A657B)
Tight cladding diameter: 250 M 900 M
Application mode: single mode and multimode

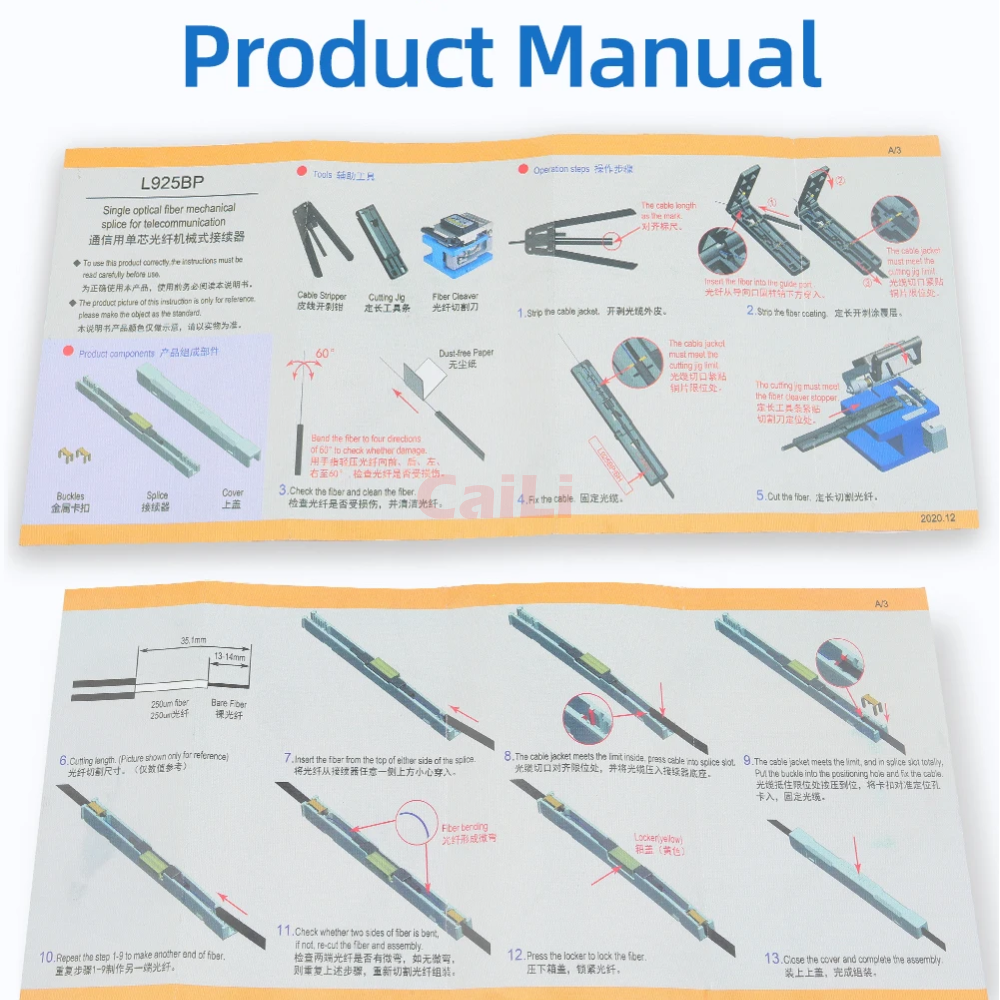

Operating time: About 30s (no fiber processing)
The insertion loss is less than 0.15dB (1310nm1550nm):
The return loss is less than -45dB.
Continued success rate: >98%
Assembly times: > 10 times
Bare tightening force: more than 5N
Tight wrap clamping force: >8N
Tensile strength: >50N
Use temperature: -40 ~ +85
Online anti pull test (30N): IL = 0.2dB
Mechanical durability (500): IL = 0.2dB
Drop test: (4m from the cement floor in each direction 1 times, a total of 3 times) IL = 0.2dB
technical standard
Scope of application: 3.1 x 2.0mm dish optical cable
Fiber diameter: 125 μm (657A657B)
Tight cladding diameter: 250 M 900 M
Application mode: single mode and multimode
Operating time: About 30s (no fiber processing)
The insertion loss is less than 0.15dB (1310nm1550nm):
The return loss is less than -45dB.
Continued success rate: >98%
Assembly times: > 10 times
Bare tightening force: more than 5N
Tight wrap clamping force: >8N
Tensile strength: >50N
Use temperature: -40 ~ +85
Online anti pull test (30N): IL = 0.2dB
Mechanical durability (500): IL = 0.2dB
Drop test: (4m from the cement floor in each direction 1 times, a total of 3 times) IL = 0.2dB
Specification
item | value |
Model Number | L925BP |
Type | Fiber Optic Cable |
Place of Origin | China |
Guangdong | |
Brand Name | CaiLi |
Use | FTTX |
Warranty Time | 5 YEARS |
Network | TCP, GPRS, wifi |
