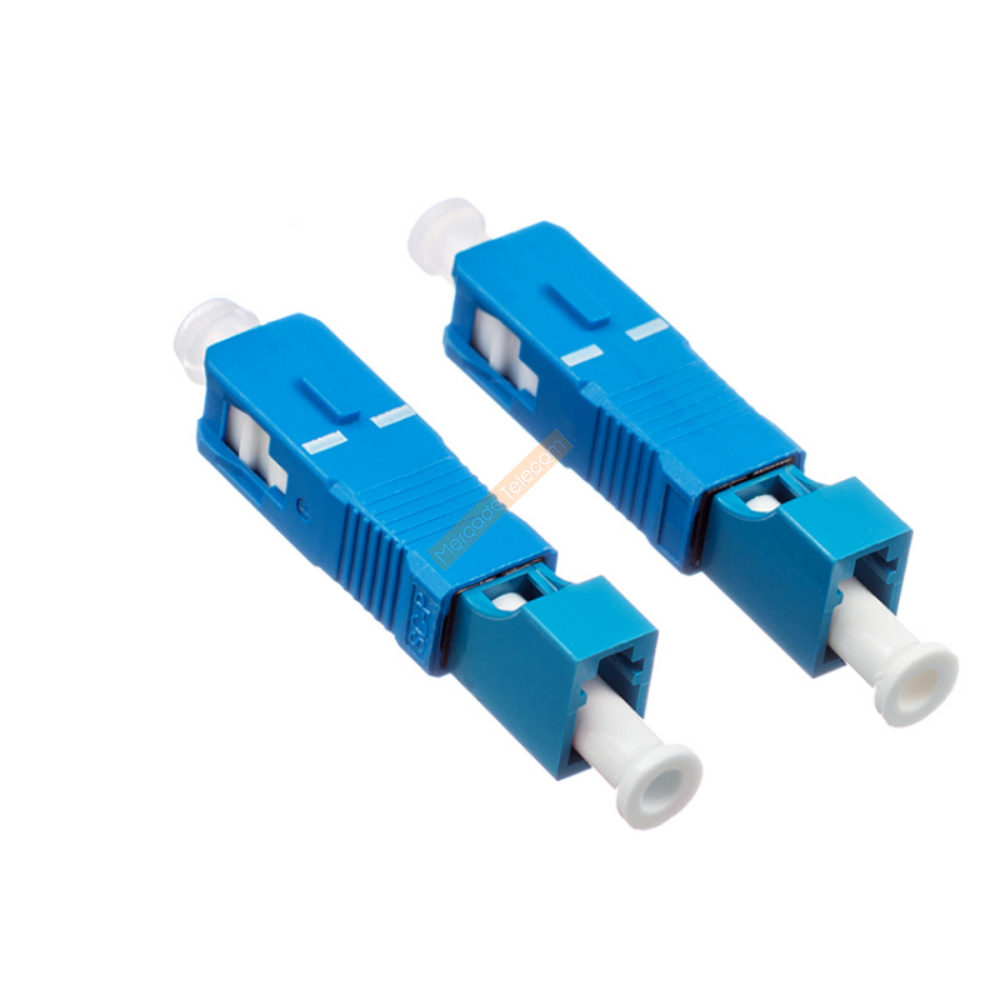

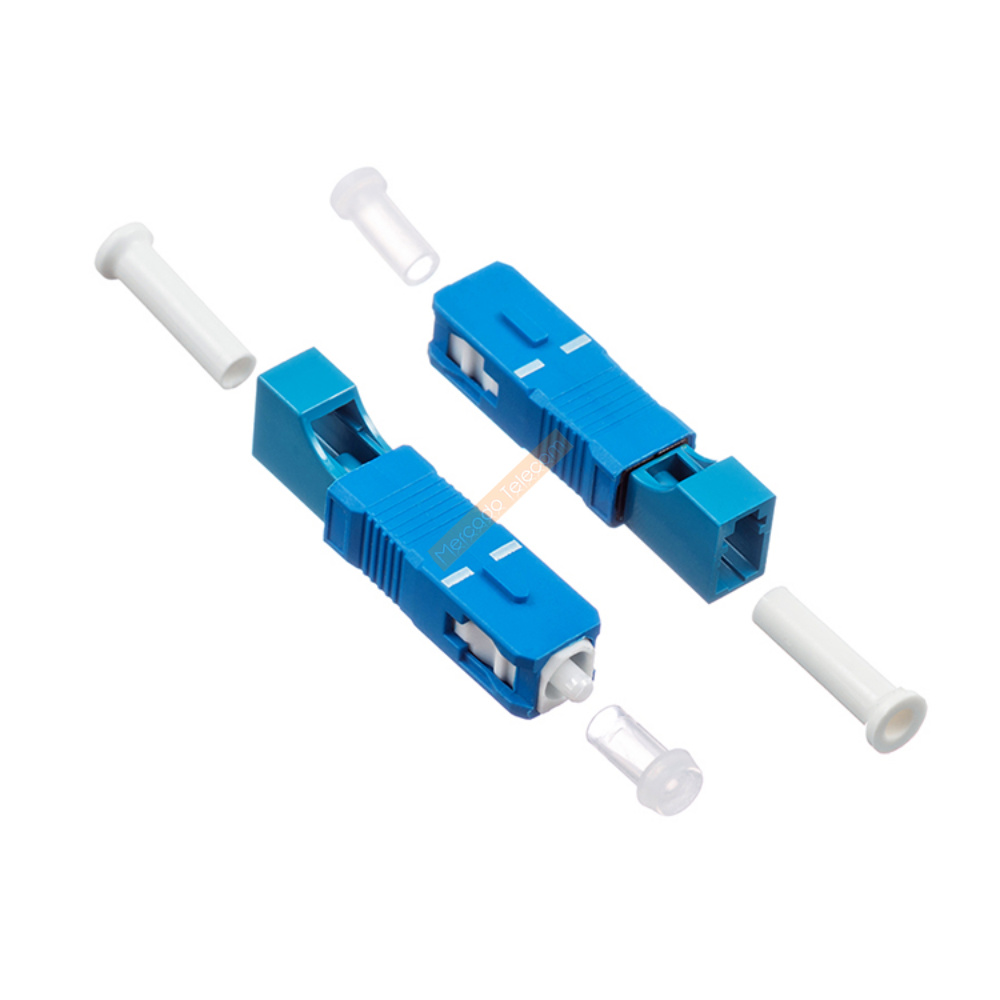

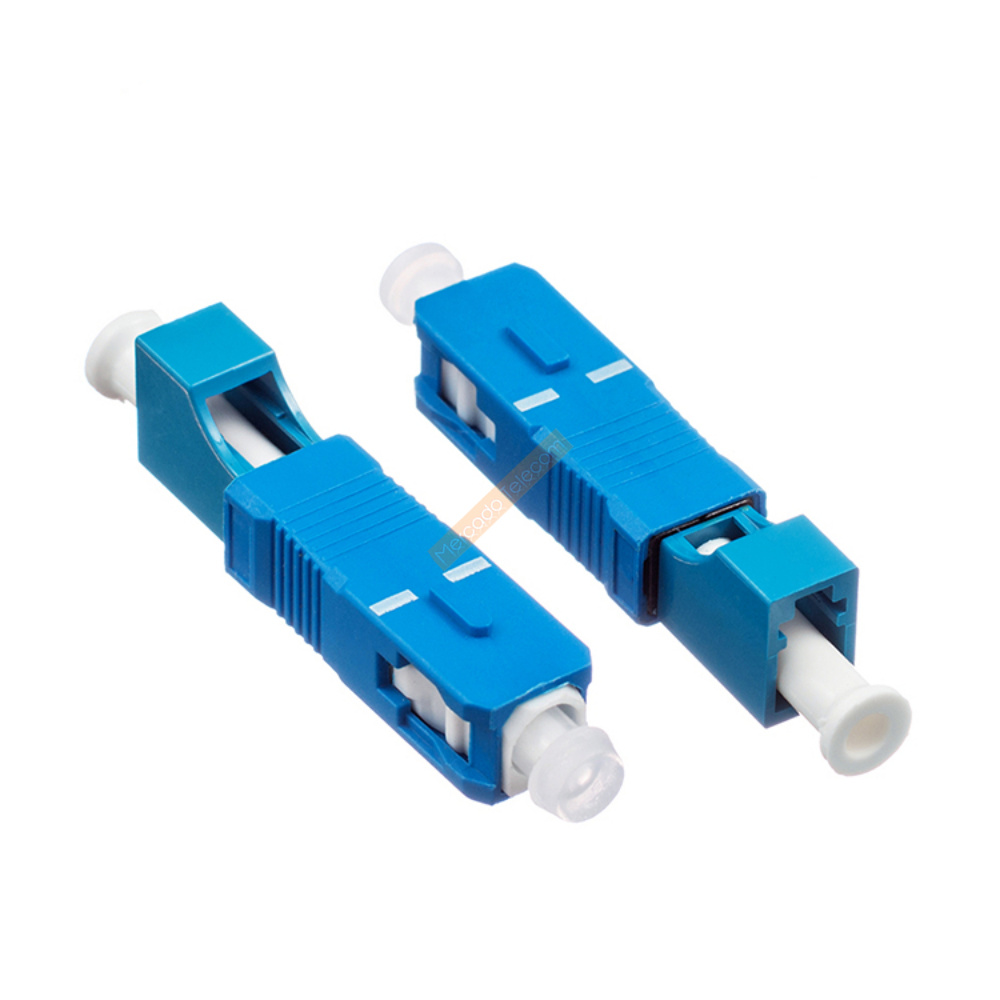

Optical Equipment Tool LC Female to SC Male Hybrid Flange Singlemode 9/125 SM Optical Fiber Adapter Connector
Fiber Optic Adapter
minimum order
1 bag
Quantity
$6.00 - $7.00
/ bag
- Model Number:Fiber Optic Adapter
- Type:FIBER OPTIC ADAPTER
- Place of Origin:China
- Brand:OEM
- Packaging:PE
- Description:Flange
- Housing Material:plastic
- Mode:Singlemode
- Convert From (Adapter End):LC UPC
- Fiber Cladding Diameter:2mm/3mm
- Simplex/Duplex:simplex
- Fastener type:PUSH-PULL
- Cable diameter:3.0mm
- Connector Style:LC
. High precision and good compatiblity
. High reliability and stability
Specification:
1. Hybrid adapter type: LC (Female) to SC (Male)
2. Fiber tyle: SM 9/125um Fiber.
3. Insertion Loss(db): ≤ 0.30dB
4. Return Loss: ≥50dB;
5. Interchangeability(db): ≤ 0.20dB
6. Sleeve Socket Material: Zirconium dioxide ceramic
7. Working temperature: -40C to +75C.
8. Storage temperature: 45C to +75C
Parameter | Unit | SC male to LC female | |
SM |
| ||
PC/UPC/APC |
| ||
Insertion Loss (Typical) | dB | ≤0.2 | |
Return Loss | dB | ≥60 | |
Exchangeability | dB | ≤0.2 | |
Repeatability | dB | ≤0.2 | |
Durability | Time | >1000 | |
Operating Temperature | °C | -40~75 | |
Storage Temperature | °C | -45~85 |
