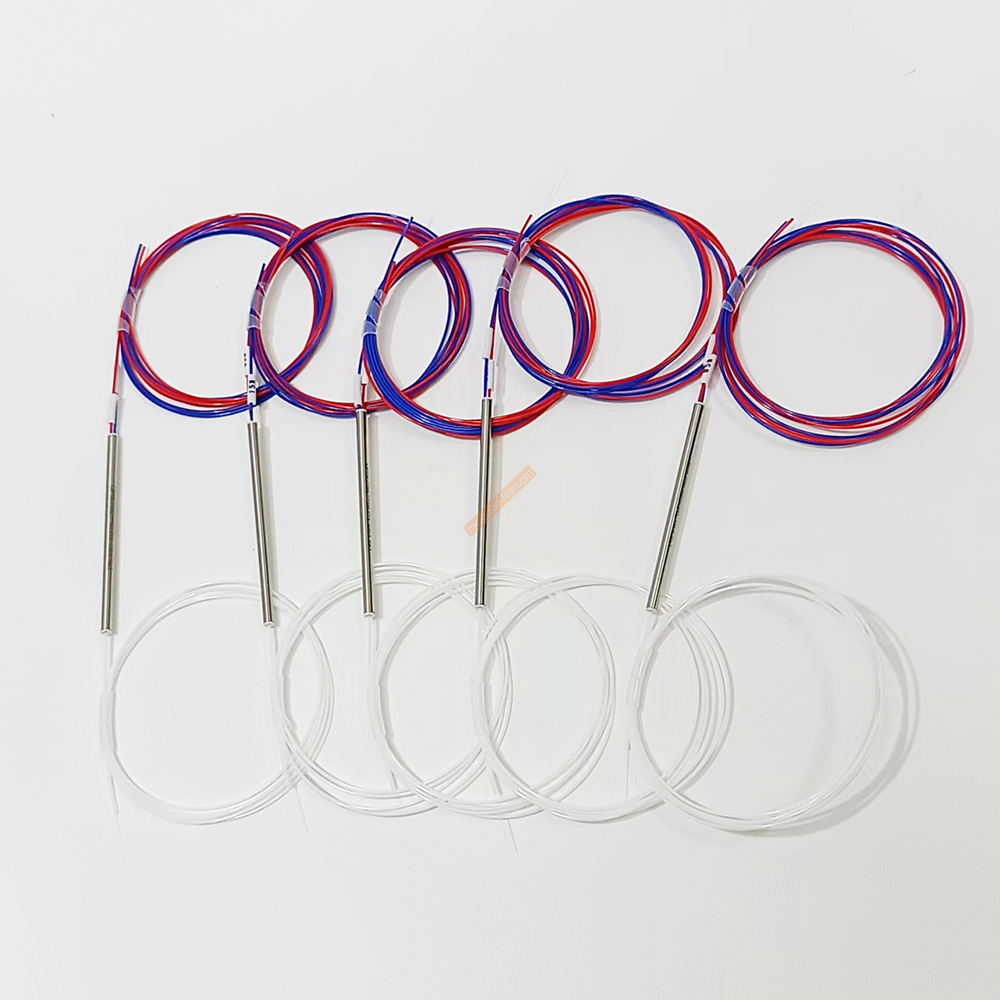

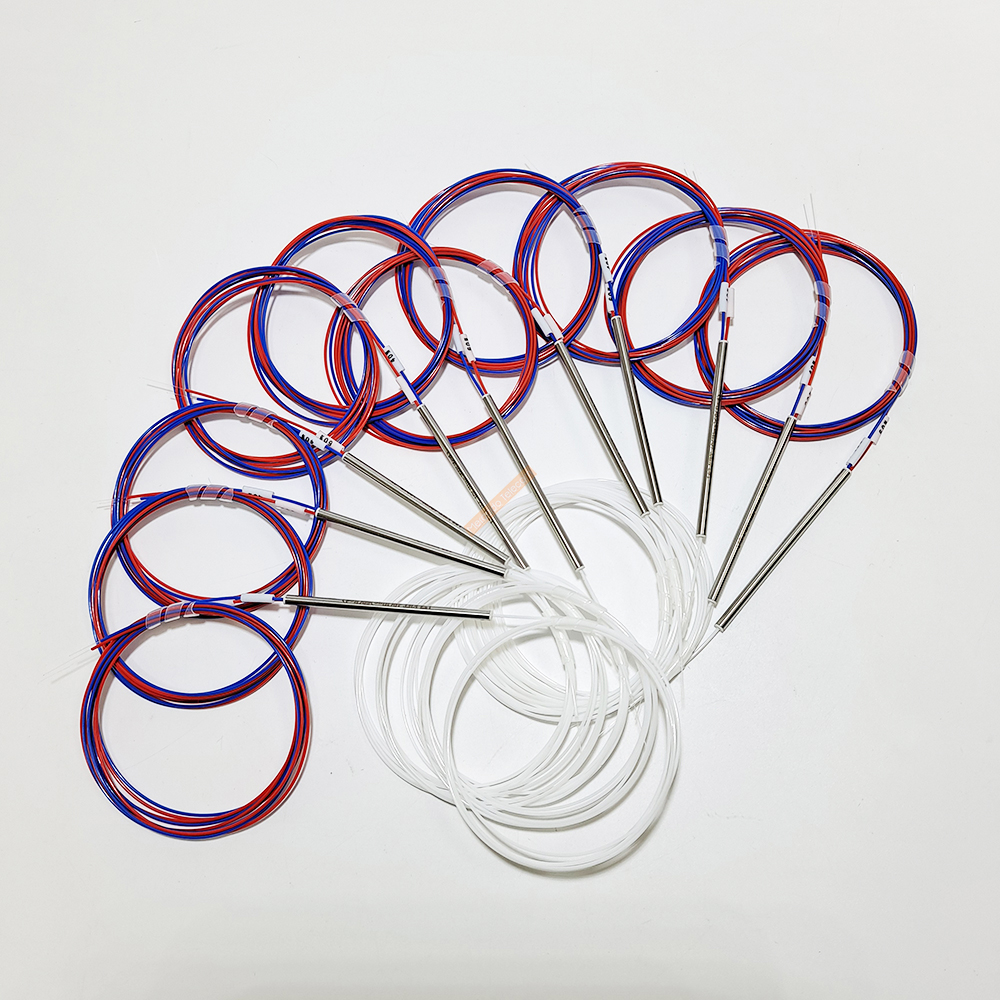

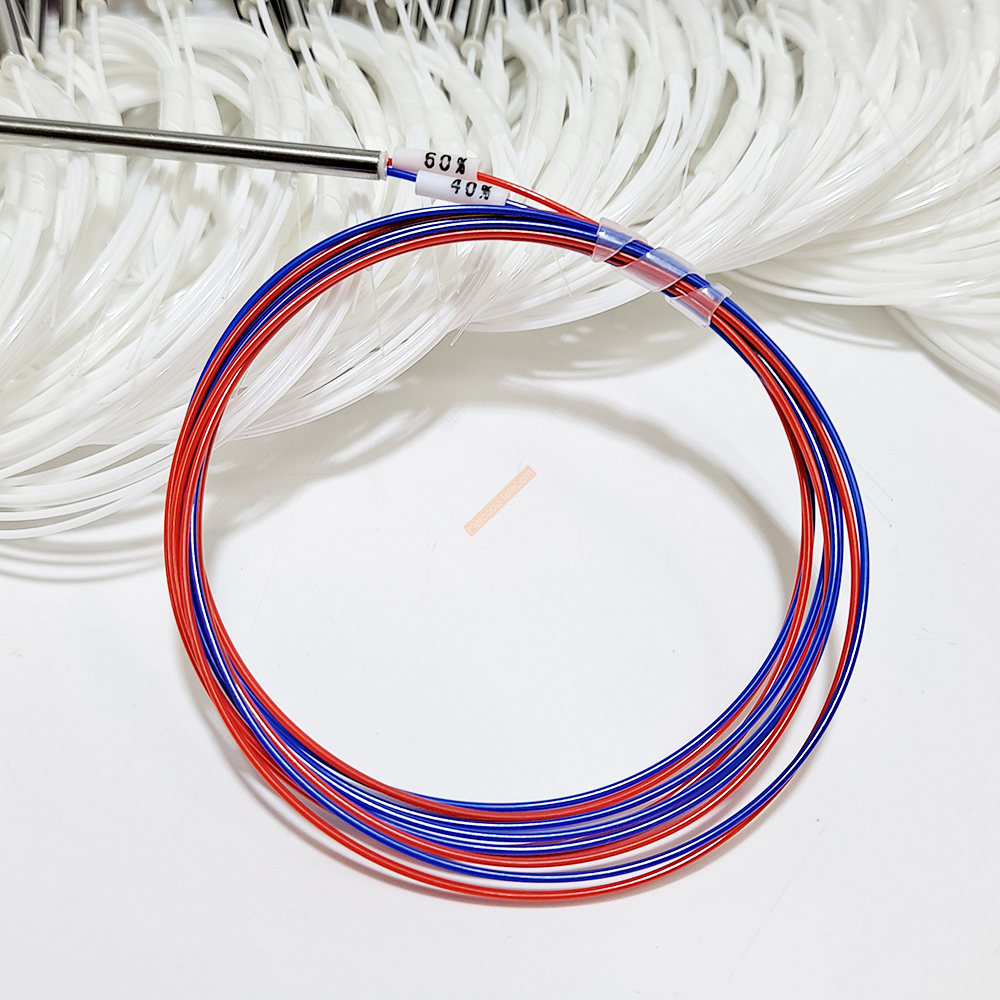

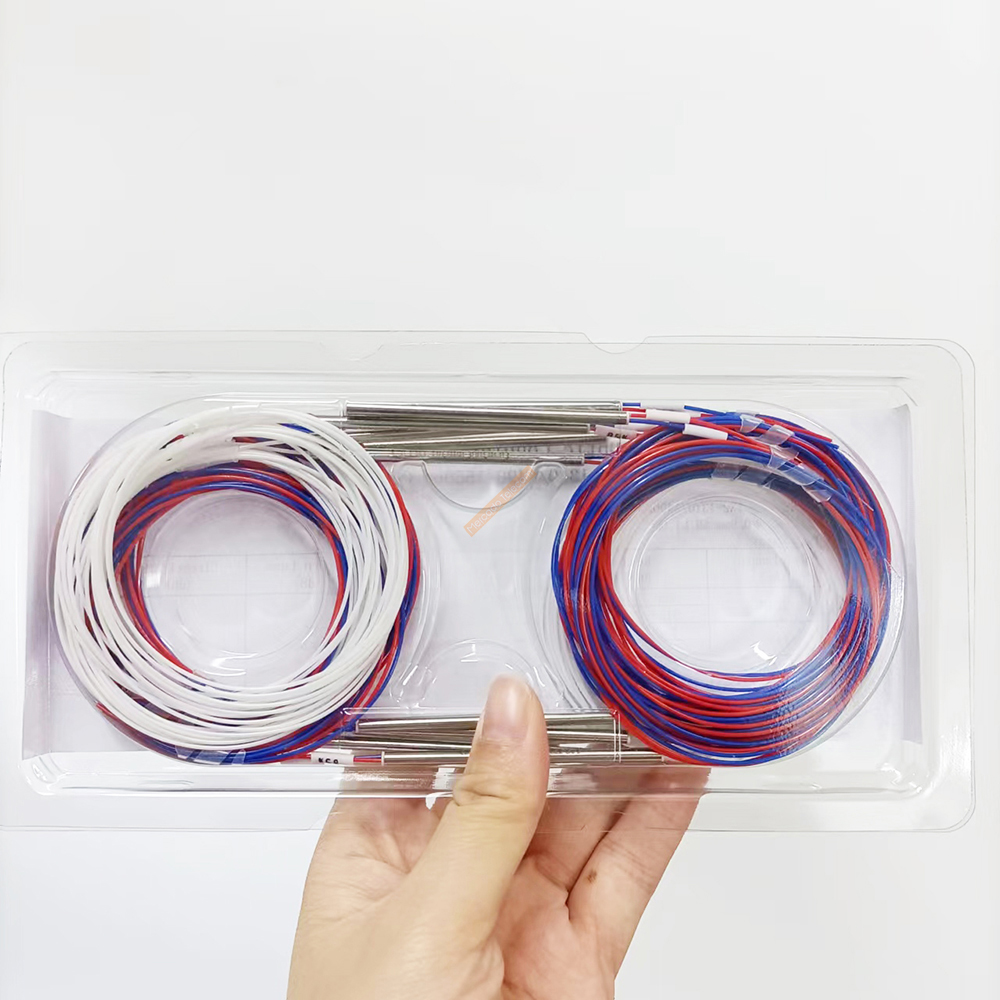

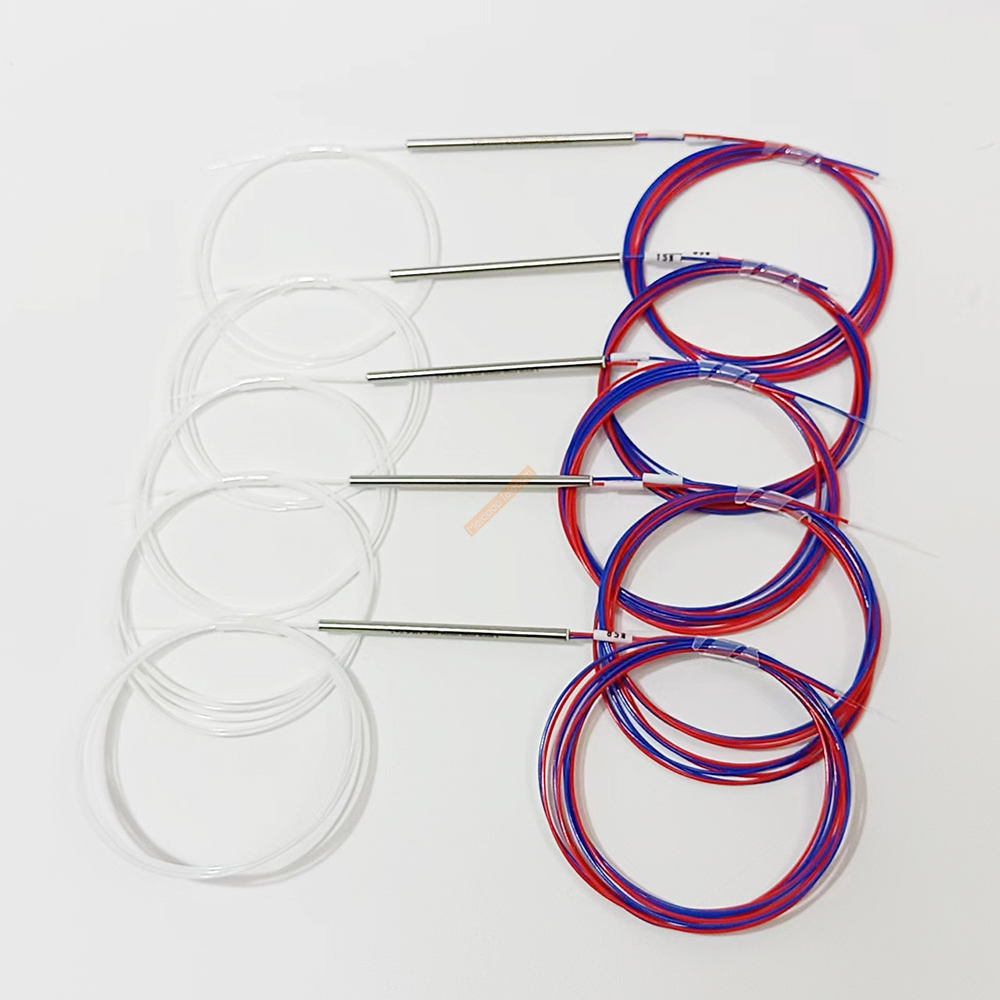

1x2 Fiber Optic FBT Splitter No Connector Unbalanced Splitter Ratio Use for FTTH
- Model Number:FBT-1X2
- Type:Splitter
- Place of Origin:Guangdong, China, Guangdong
- Brand Name:CaiLi
- Use:FTTH FTTB FTTX PON CATV
- Warranty Time:1 year
- Network:None
- Product name:Optical Splitter
- Application:FTTH FTTB FTTX Solution
- Keywords:FBT Fiber Splitter
- MOQ:2 boxes
1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3.It provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE
4. It offers both tree and star type inline couplers/splitters with Rack mount box.
5. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).
1. Low Insertion loss and PDL
2. Compact Design
3. Good channel-to-channel uniformity
4. Wide Operating Wavelength: From 1260nm to 1650nm
5. High Reliability and Stability
Parameters | 1×2 | 1×4 | 1×8 | 1×16 |
Operating wavelength | 1260 ~1650nm | |||
Insertion Loss (dB)(P/S Grade) | 3.6/4.0 | 7.2/7.4 | 10.2/10.5 | 13.5/13.7 |
uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 |
PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 |
Return Loss (dB) | ≥55 | |||
Directivity (dB) | ≥55 | |||
TDL(dB) | 0.5 | |||
Operating/Storage Temperature (℃) | -40~85 | |||
